Unit · AXIAL-PISTON PUMP
AP A10V O 45 DFR1/31R-VSC12N00 -S1041R902400393
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO45DFR1/31R-VSC12N00-S1041, material number R902400393. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1041.
- Number
- R902400393
- Type code
- AP A10V O 45 DFR1/31R-VSC12N00 -S1041
- Group
- A10VO 45
- Edition
- 06/2020

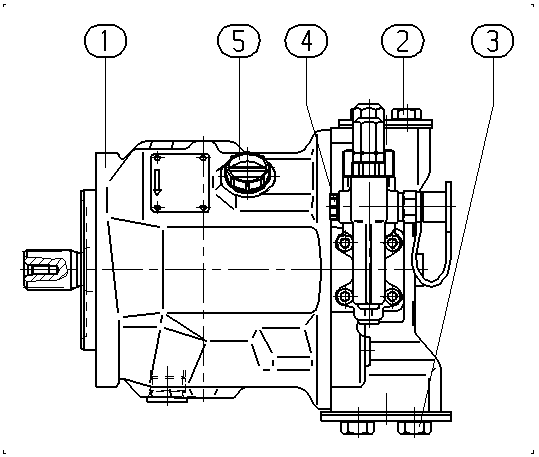

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902403027 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
Other versions 27
- R902543724 A A10V O 45 DFR1/31R-VSC12N00
- R910997414 A A10V O 45 DFR1/31R-VSC12N00
- R902483915 A A10V O 45 DFR1/31R-VSC12N00 -S2709
- R902511812 A A10V O 45 DFR1/31R-VSC12N00 -S3713
- R902513539 A A10V O 45 DFR1/31R-VSC12N00 -SO722
- R902542848 A A10V O 45 DFR1/31R-VSC12N00 ESO 97
- R902490885 A A10V O 45 DFR1/31R-VSC12N00 ESO413
- R902462129 AL A10V O 45 DFR1/31R-VSC12N00
- R902521293 AL A10V O 45 DFR1/31R-VSC12N00
- R902521427 AL A10V O 45 DFR1/31R-VSC12N00
- R902521960 AL A10V O 45 DFR1/31R-VSC12N00
- R902544803 AL A10V O 45 DFR1/31R-VSC12N00
- R902513538 AL A10V O 45 DFR1/31R-VSC12N00 -S3483
- R902544012 AL A10V O 45 DFR1/31R-VSC12N00 -S3483
- R992001820 AL A10V O 45 DFR1/31R-VSC12N00 -S3483
- R902511811 AL A10V O 45 DFR1/31R-VSC12N00 -S3713
- R902536828 AL A10V O 45 DFR1/31R-VSC12N00 -S4332
- R902541321 AL A10V O 45 DFR1/31R-VSC12N00 -S4497
- R902543631 AL A10V O 45 DFR1/31R-VSC12N00 -S4556
- R902420055 AL A10V O 45 DFR1/31R-VSC12N00 -SO 32
- R902516496 AL A10V O 45 DFR1/31R-VSC12N00 ESO413
- R902531583 AL A10V O 45 DFR1/31R-VSC12N00 -S2709
- R902556488 AP A10V O 45 DFR1/31R-VSC12N00
- R902473981 AP A10V O 45 DFR1/31R-VSC12N00 -S2724
- R902480005 AP A10V O 45 DFR1/31R-VSC12N00 -S2915
- R902521303 AP A10V O 45 DFR1/31R-VSC12N00 -S2915
- R902487532 AP A10V O 45 DFR1/31R-VSC12N00 -S3229
