Unit · AXIAL-PISTON PUMP

AP A10V O 45 DFR1/52R-PSC64N00 -S1137R902401051

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO45DFR1/52R-PSC64N00-S1137, material number R902401051. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00). Special version no. 1137.

Number
R902401051
Type code
AP A10V O 45 DFR1/52R-PSC64N00 -S1137
Group
A10VO 45
Edition
06/2020

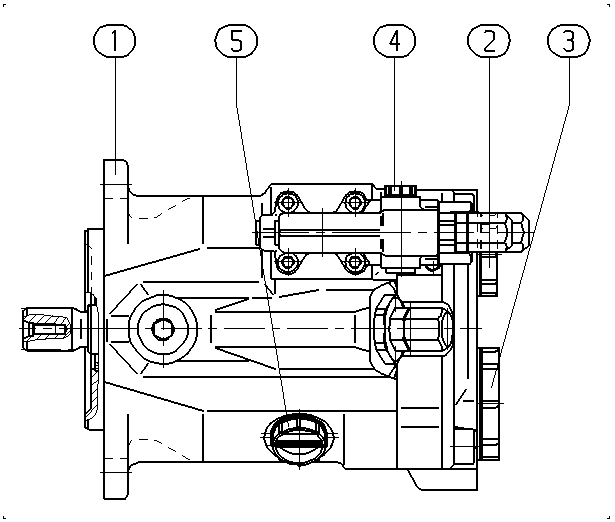

AP A10V O 45 DFR1/52R-PSC64N00 -S1137 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902409556AXIAL-PISTON PUMP Assembly parts list →L1
R902603192SEAL SCREW1
R902603194SEAL SCREW1
R902602014SEAL SCREW1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portThreaded port, UNC rear not for through drive64
Through driveWithout through driveN00

Other versions 12
