Unit · AXIAL-PISTON PUMP
ALAA10VSO 71 DR /31R-PKC92N00 -S1389R902401214
Axial piston pump Bosch Rexroth series A10VSO, type code ALAA10VSO71DR/31R-PKC92N00-S1389, material number R902401214. Nominal size: NG 71. Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Through drive: without through drive (N00). Special version no. 1389.
- Number
- R902401214
- Type code
- ALAA10VSO 71 DR /31R-PKC92N00 -S1389
- Group
- A10VSO 71
- Edition
- 06/2020

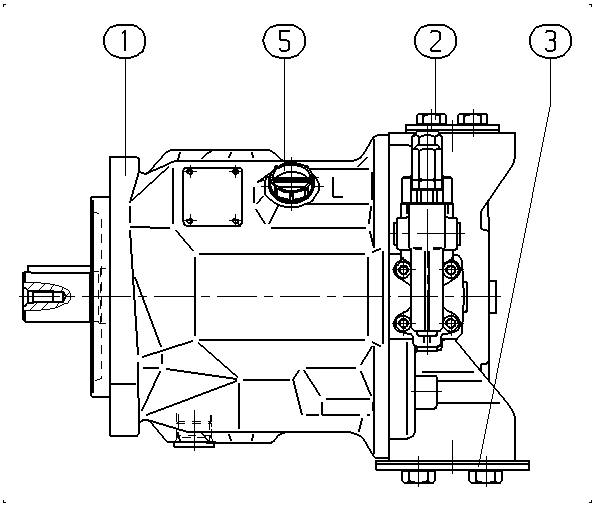

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418580 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400591 | FLANGE COVER | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
| Through drive | Without through drive | N00 |
