Unit · AXIAL-PISTON PUMP
A AA10VSO 71 DFLR/31R-PKC92K68 -SO 52R902401361
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO71DFLR/31R-PKC92K68-SO52, material number R902401361. Nominal size: NG 71. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 52.
- Number
- R902401361
- Type code
- A AA10VSO 71 DFLR/31R-PKC92K68 -SO 52
- Group
- A10VSO 71
- Edition
- 06/2020

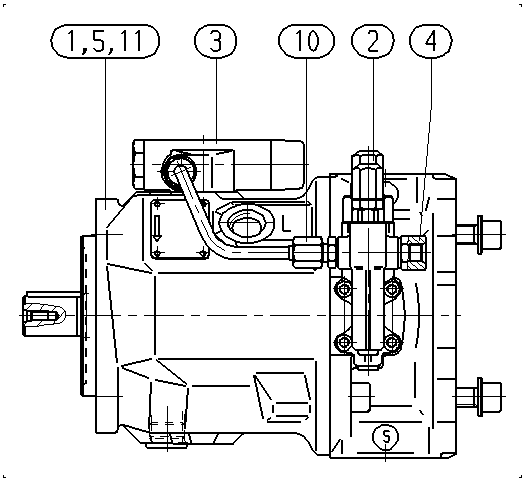

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902437187 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932940 | ADAPTER Assembly parts list →L | 1 | ||
| R910917867 | SIDE MARKER RING | 1 | ||
| R910963807 | PIPING Assembly parts list →L | 1 | ||
| R910934113 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
