Unit · AXIAL-PISTON PUMP

ALA10VO71DFR/31R-VSC92N00-S2953R902401418

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71DFR/31R-VSC92N00-S2953, material number R902401418. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: without through drive (N00). Special version no. 2953.

Number: R902401418
Type code: ALA10VO71DFR/31R-VSC92N00-S2953
Group: A10VO 71
Edition: 06/2020

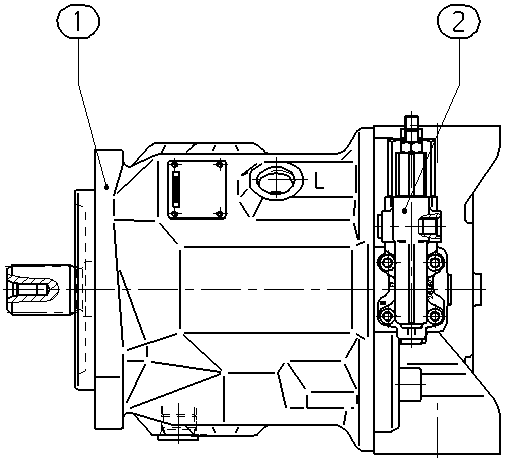

ALA10VO71DFR/31R-VSC92N00-S2953 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R910999624	BASE UNIT Assembly parts list →L	1
	R902454495	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T open Hydraulic	DFR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom	92
Through drive	Without through drive	N00

Parameters from the type code

Other versions 17
