Unit · AXIAL-PISTON PUMP

A A10VSO 18 DR /31R-VSC12N00 -S1016R902402186

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DR/31R-VSC12N00-S1016, material number R902402186. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 1016.

Number: R902402186
Type code: A A10VSO 18 DR /31R-VSC12N00 -S1016
Group: A10VSO 18
Edition: 06/2020

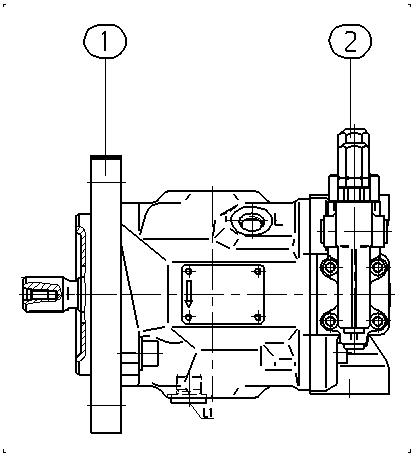

A A10VSO 18 DR /31R-VSC12N00 -S1016 — Drawing

Pos.	Number	Name	Qty
	R902402214	BASE UNIT Assembly parts list →L	1
	R902488507	CONTROL VALVE Assembly parts list →L	1
70	R902421944	SHIPPING PROTECTION	1
71	R902421945	SHIPPING PROTECTION	1
72	R902602015	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	18	18
Control device	Pressure controller hydraulic	DR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Splined shaft standard shaft ISO 3019-1	S
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
