Unit · AXIAL-PISTON PUMP
AA10VO100DFLR/31R-PUC62N00-S1036R902402857
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100DFLR/31R-PUC62N00-S1036, material number R902402857. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 1036.
- Number
- R902402857
- Type code
- AA10VO100DFLR/31R-PUC62N00-S1036
- Group
- A10VO 100
- Edition
- 06/2020

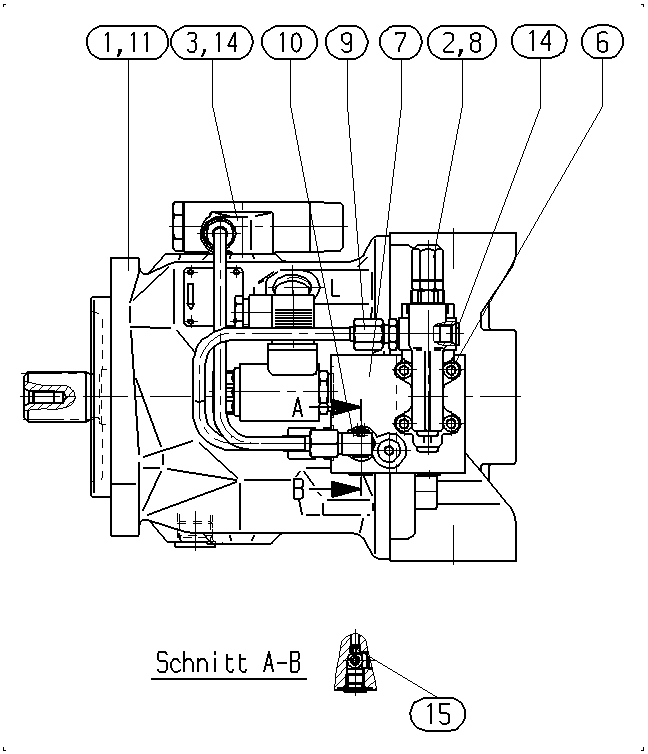

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902402860 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533362 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R910994874 | VALVE PLATE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910991634 | PIPING Assembly parts list →L | 1 | ||
| R902402820 | PIPING Assembly parts list →L | 1 | ||
| R902402830 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 3 | ||
| R910436941 | NOZZLE | 1 | ||
| 60 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Reduced diameter; limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
