Unit · AXIAL-PISTON PUMP
A A10VSO140 DFR1/31R-PPB12K07 -SO355R902403061
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFR1/31R-PPB12K07-SO355, material number R902403061. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 355.
- Number
- R902403061
- Type code
- A A10VSO140 DFR1/31R-PPB12K07 -SO355
- Group
- A10VSO 140
- Edition
- 06/2020

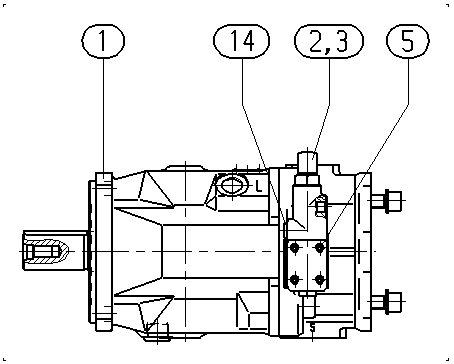

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993406 | BASE UNIT Assembly parts list →L | 1 | ||
| R910962672 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920244 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUG | 1 | ||
| 70 | R902421947 | SHIPPING PROTECTION | 1 | |
| 71 | R902421950 | SHIPPING PROTECTION | 1 | |
| 72 | R902602012 | SEAL SCREW | 1 | |
| 73 | R902602008 | SEAL SCREW | 2 | |
| 74 | R902602979 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
