Unit · AXIAL-PISTON PUMP
APA10VO100ED61/31R-PUC61N00-SO805R902403230
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO100ED61/31R-PUC61N00-SO805, material number R902403230. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 805.
- Number
- R902403230
- Type code
- APA10VO100ED61/31R-PUC61N00-SO805
- Group
- A10VO 100
- Edition
- 06/2020

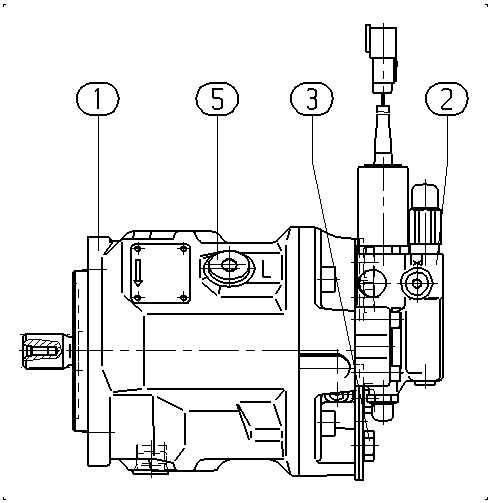

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902403228 | AXIAL-PISTON PUMP | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Reduced diameter; limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
