Unit · AXIAL-PISTON PUMP

A A10V O140 DFLR/31R-PSD62N00 -S1100R902403834

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFLR/31R-PSD62N00-S1100, material number R902403834. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 1100.

Number: R902403834
Type code: A A10V O140 DFLR/31R-PSD62N00 -S1100
Group: A10VO 140
Edition: 06/2020

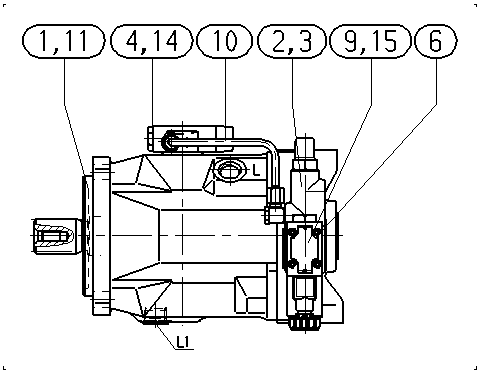

A A10V O140 DFLR/31R-PSD62N00 -S1100 — Drawing

Pos.	Number	Name	Qty
	R910918206	BASE UNIT Assembly parts list →L	1
	R902408027	CONTROL VALVE Assembly parts list →L	1
	R902404989	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910935007	TIE-ROD	4
7	R902650252	DIRECTIONAL-CONTROL VALVE	1
8	R900176106	FEMALE HEX NUT	4
	R910964730	PIPING Assembly parts list →L	1
	R902403926	POWER DIAGRAM	1
	R909154478	SCREW PLUG	1
	R902404993	INTERMEDIATE PLATE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	140	140
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2/4-hole	D
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code
