Unit · AXIAL-PISTON PUMP
AA10VO71DFEE/31R-PSC12K07-SO420R902403948
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFEE/31R-PSC12K07-SO420, material number R902403948. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 420.
- Number
- R902403948
- Type code
- AA10VO71DFEE/31R-PSC12K07-SO420
- Group
- A10VO 71
- Edition
- 06/2020

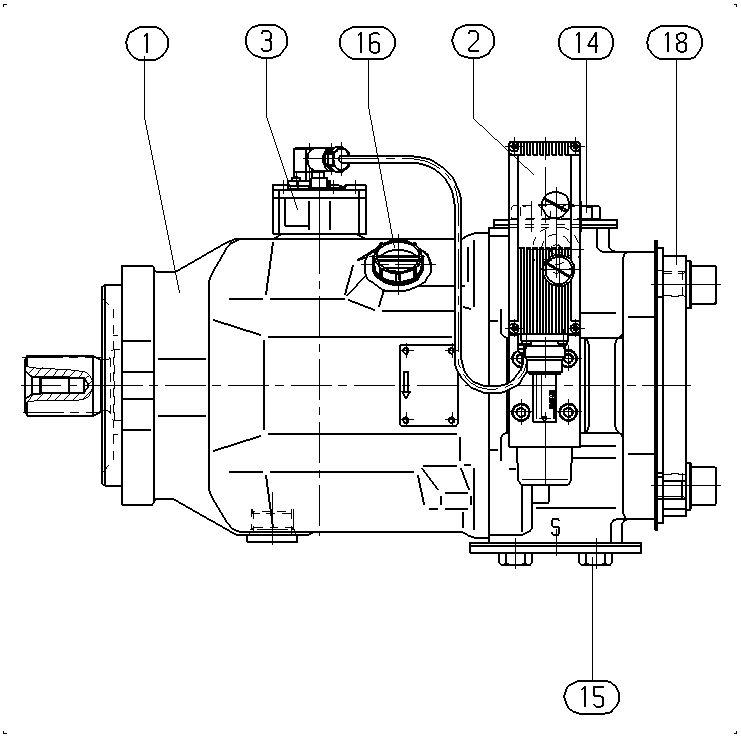

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902403899 | BASE UNIT Assembly parts list →L | 1 | ||
| R902405053 | VALVE | 1 | ||
| R900868651 | ASSEMBLY KIT | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 2 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902602979 | FLANGE COVER | 1 | ||
| 20 | R902650248 | PLUG-IN CONNECTOR | 1 | |
| 21 | R902650253 | PRESSURE SENSOR | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
