Unit · AXIAL-PISTON PUMP
APA10VO140DFR1/31R-PSD62K17R902404990
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DFR1/31R-PSD62K17, material number R902404990. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62).
- Number
- R902404990
- Type code
- APA10VO140DFR1/31R-PSD62K17
- Group
- A10VO 140
- Edition
- 06/2020

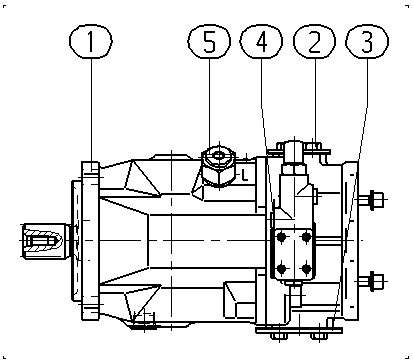

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902404991 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602015 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
