Unit · AXIAL-PISTON PUMP

A A10V O 28 DFLR/31L-PSC12N00 -SO681R902405136

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFLR/31L-PSC12N00-SO681, material number R902405136. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 681.

Number: R902405136
Type code: A A10V O 28 DFLR/31L-PSC12N00 -SO681
Group: A10VO 28
Edition: 06/2020

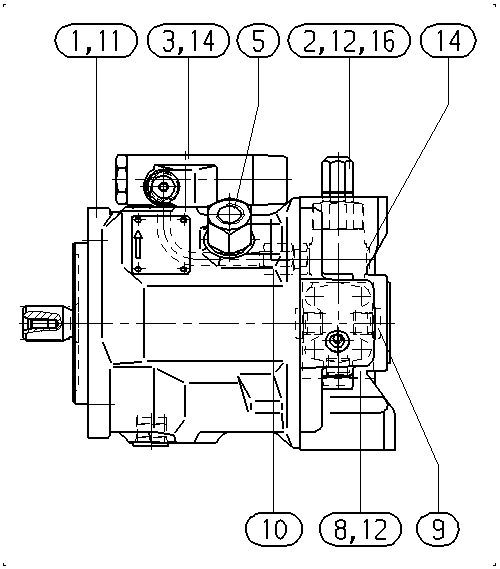

A A10V O 28 DFLR/31L-PSC12N00 -SO681 — Drawing

Pos.	Number	Name	Qty
	R910970681	BASE UNIT Assembly parts list →L	1
	R902490089	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910792829	ADAPTER Assembly parts list →L	1
	R910983074	INTERMEDIATE PLATE	1
	R909151979	SCREW PLUG	3
	R910987476	PIPING Assembly parts list →L	1
	R910908537	POWER DIAGRAM	1
	R910515078	O-RING	3
	R909154478	SCREW PLUG	2
	R910126454	SOCKET HEAD CAP SCREW	4
17	R902417268	SEAL	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive	12
Through drive	Without through drive	N00

Parameters from the type code
