Unit · AXIAL-PISTON PUMP
AHA10VO140DFLR/31L-PQC12K02-S1096R902405231
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO140DFLR/31L-PQC12K02-S1096, material number R902405231. Nominal size: NG 140. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Special version no. 1096.
- Number
- R902405231
- Type code
- AHA10VO140DFLR/31L-PQC12K02-S1096
- Group
- A10VO 140
- Edition
- 06/2020

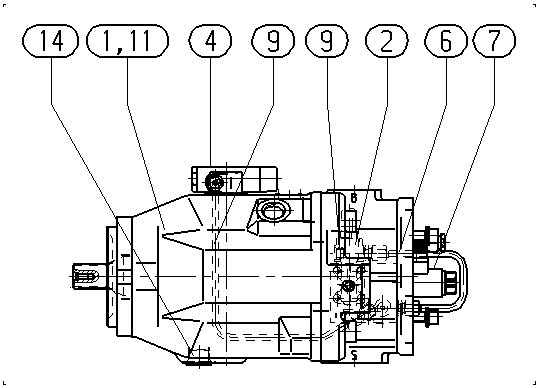

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902404849 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533362 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R910991705 | VALVE PLATE Assembly parts list →L | 1 | ||
| 8 | R902434482 | SEAL | 1 | |
| R910991634 | PIPING Assembly parts list →L | 1 | ||
| 10 | R910995698 | HOSE ASSEMBLY Assembly parts list →L | 1 | |
| R910964414 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 3 | ||
| 60 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
