Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31L-PSC62L40 -SO596R902405863

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31L-PSC62L40-SO596, material number R902405863. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Special version no. 596.

Number: R902405863
Type code: A A10V O 71 DFLR/31L-PSC62L40 -SO596
Group: A10VO 71
Edition: 06/2020

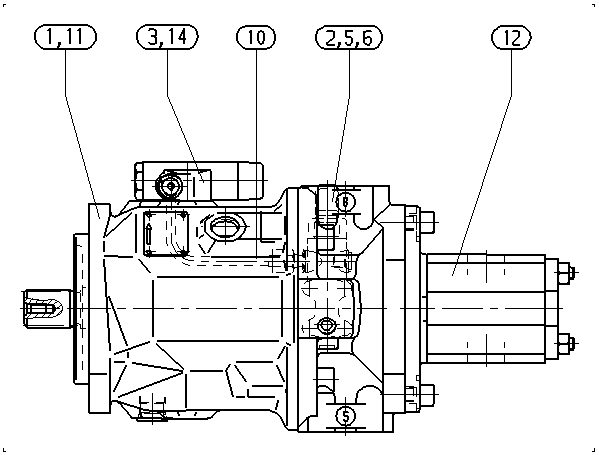

A A10V O 71 DFLR/31L-PSC62L40 -SO596 — Drawing

Pos.	Number	Name	Qty
	R910944642	BASE UNIT Assembly parts list →L	1
	R902533312	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R902455818	CONTROL VALVE Assembly parts list →L	1
	R910478474	SOCKET HEAD CAP SCREW	4
	R910985244	PIPING Assembly parts list →L	1
	R910966331	POWER DIAGRAM	1
	0510725406	HYDRAULIC GEAR PUMPL	1
	R909154478	SCREW PLUG	1
61	R910109762	SOCKET HEAD CAP SCREW	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62

Other versions 1

R910997469 A A10V O 71 DFLR/31L-PSC62L40 -SO596
