Unit · AXIAL-PISTON PUMP
AA10VO45DRG/52L-PSC64N00R902406011
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DRG/52L-PSC64N00, material number R902406011. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00).
- Number
- R902406011
- Type code
- AA10VO45DRG/52L-PSC64N00
- Group
- A10VO 45
- Edition
- 06/2020

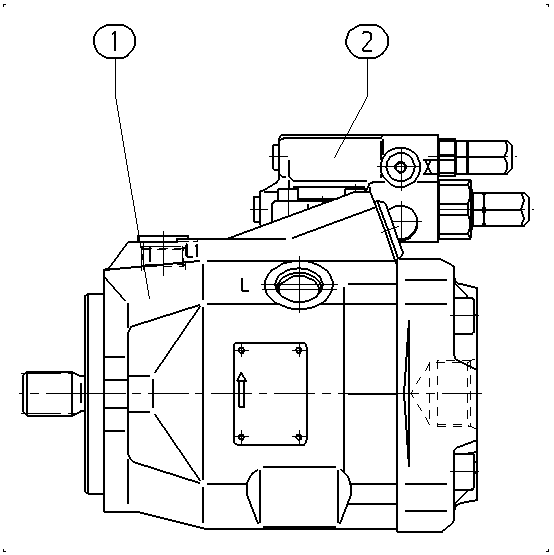

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910968809 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455384 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | Threaded port, UNC rear not for through drive | 64 |
| Through drive | Without through drive | N00 |
