Unit · AXIAL-PISTON PUMP
A A10VNO 41 DFR1/52L-HRC40N00 ES1421R902406450
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO41DFR1/52L-HRC40N00ES1421, material number R902406450. Nominal size: NG 41. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1421.
- Number
- R902406450
- Type code
- A A10VNO 41 DFR1/52L-HRC40N00 ES1421
- Group
- A10VNO 41
- Edition
- 06/2020

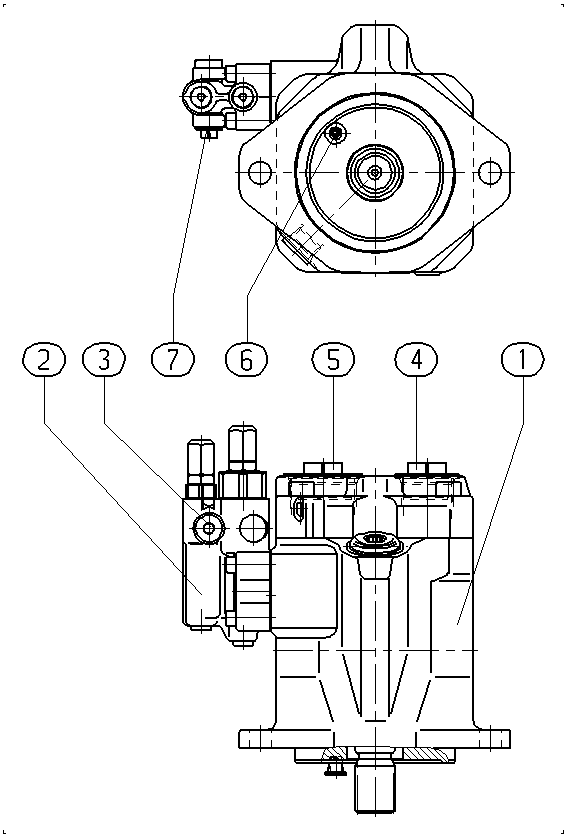

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902427119 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532993 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909831743 | SCREW PLUG | 1 | ||
| 70 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902602206 | SEAL SCREW | 1 | |
| 73 | R902602007 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 | |
| 75 | R909087113 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 41 | 41 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 40 | 40 |
| Through drive | Without through drive | N00 |
