Unit · AXIAL-PISTON PUMP
A A10V O140 DRG /31R-VSD62K17 -SO808R902406737
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DRG/31R-VSD62K17-SO808, material number R902406737. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off hydraulic remote controlled (DRG). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: top, bottom, opposite, fastening thread UNC (62). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP (K17). Special version no. 808.
- Number
- R902406737
- Type code
- A A10V O140 DRG /31R-VSD62K17 -SO808
- Group
- A10VO 140
- Edition
- 06/2020

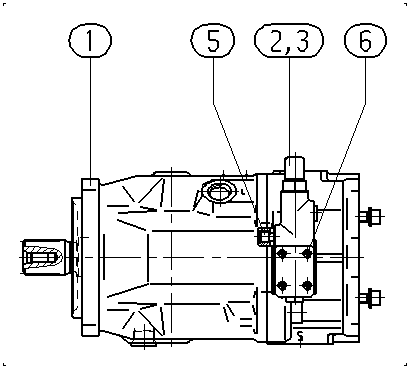

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902406735 | BASE UNIT Assembly parts list →L | 1 | ||
| R910943450 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910984005 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Control devices | pressure cut-off hydraulic remote controlled | DRG |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP | K17 |
