Unit · AXIAL-PISTON PUMP

AL A10V O 60 DFR1/52L-VRD12K68 -S2090R902406788

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO60DFR1/52L-VRD12K68-S2090, material number R902406788. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2090.

Number
R902406788
Type code
AL A10V O 60 DFR1/52L-VRD12K68 -S2090
Group
A10VO 60
Edition
06/2020

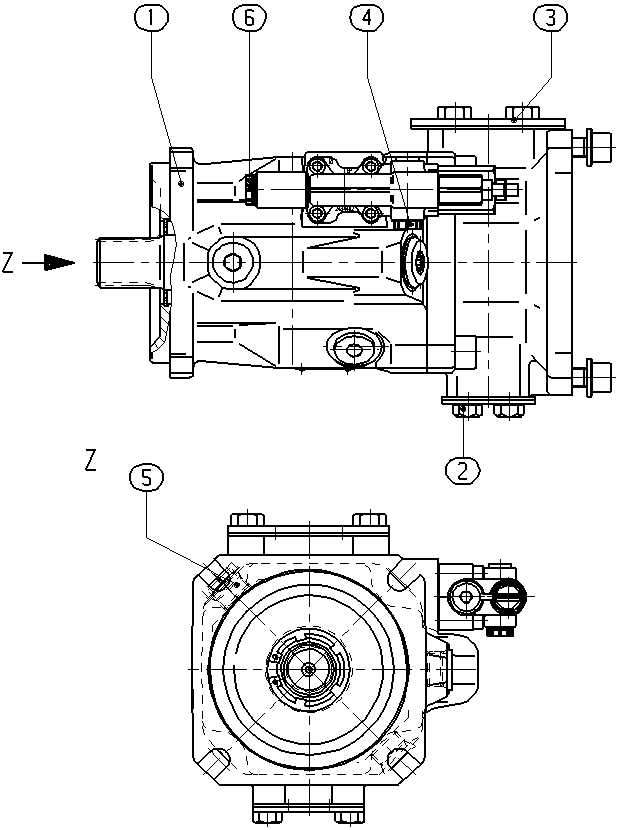

AL A10V O 60 DFR1/52L-VRD12K68 -S2090 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902450276AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400590FLANGE COVER1
R902602014SEAL SCREW1
R902603190SEAL SCREW1
R902602015SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)6060
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftsimilar to shaft "S" however for higher torqueR
Mounting flangeBased on ISO 3019-1 (SAE) 4-holeD
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive101-2 (B) 7/8 in 13T 16/32DPK68

Other versions 7
