Unit · AXIAL-PISTON PUMP
AAA10VSO140DRG/31R-VKD62K01R902406868
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DRG/31R-VKD62K01, material number R902406868. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R902406868
- Type code
- AAA10VSO140DRG/31R-VKD62K01
- Group
- A10VSO 140
- Edition
- 06/2020

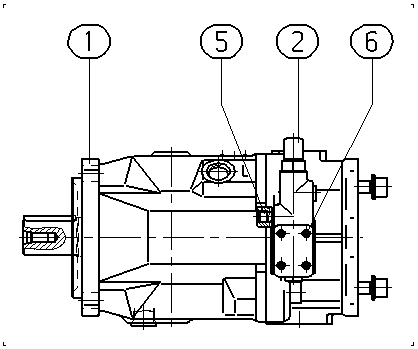

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902406869 | BASE UNIT Assembly parts list →L | 1 | ||
| R910943450 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910984005 | ADAPTER Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
