Unit · CONTROL
V A4VSG 180 HD1BT/30R-PR902407221
Control Bosch Rexroth series A4VSO, type code VA4VSG180HD1BT/30R-P, material number R902407221. Nominal size: NG 180. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902407221
- Type code
- V A4VSG 180 HD1BT/30R-P
- Group
- A4VSG 180
- Edition
- 07/2020

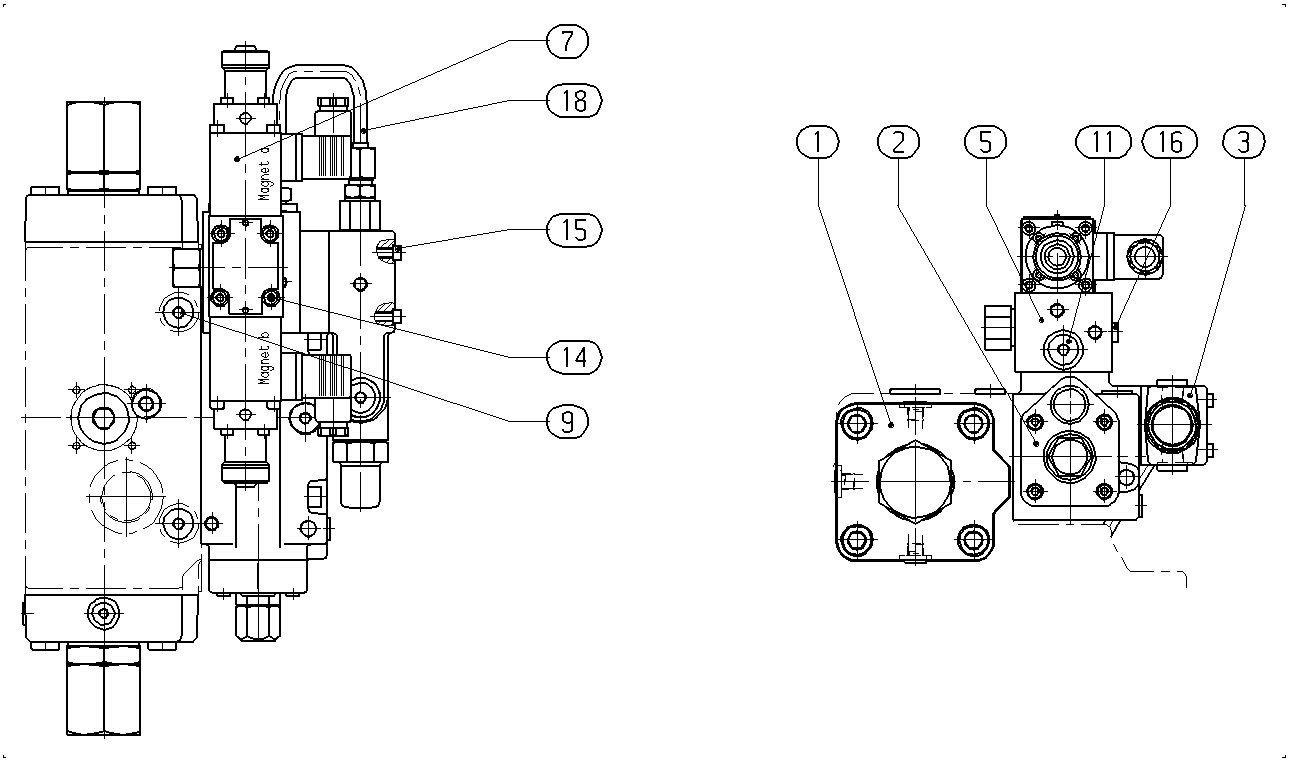

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910997060 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992874 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989257 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989090 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902405795 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154024 | SCREW PLUG | 3 | ||
| R902403696 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 180 | 180 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T | |
| Series | Series 3, index 0 | 30 |
