Unit · AXIAL-PISTON PUMP
A AA4VSO 125 DFR /30L-PSD63K05 -S1310R902407763
Axial piston pump Bosch Rexroth series A4VSO, type code AAA4VSO125DFR/30L-PSD63K05-S1310, material number R902407763. Nominal size: NG 125. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: based on ISO 3019-2 metric 4-hole (D). Working port: standard version fastening thread, port B and S: SAE flange lateral, offset 90°, UNC metric (can only be ordered without through- drive (N00) or with K.. through-drives) (63).
- Number
- R902407763
- Type code
- A AA4VSO 125 DFR /30L-PSD63K05 -S1310
- Group
- A4VSO 125
- Edition
- 06/2020

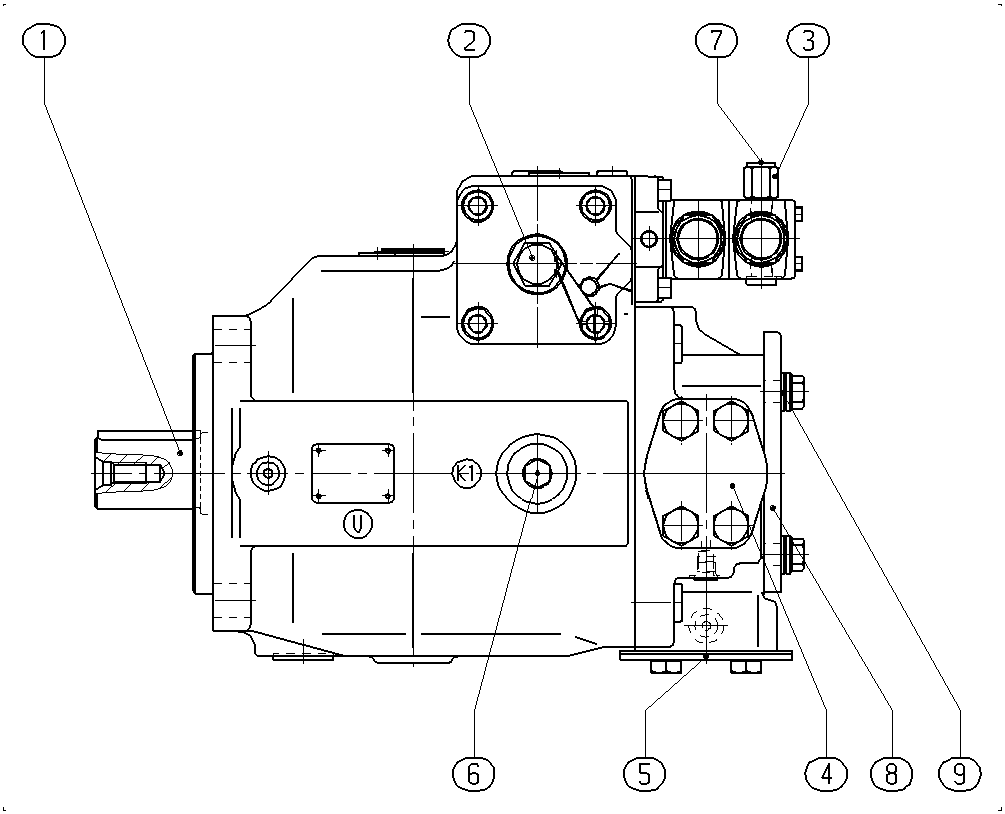

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902407599 | BASE UNIT Assembly parts list →L | 1 | ||
| R902420866 | REGULATOR Assembly parts list →L | 1 | ||
| R910984004 | ADAPTER Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R909153378 | SCREW PLUG | 1 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R902401767 | SEALING COVER | 1 | ||
| R902650190 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Pressure and flow controller 92060 | DFR | |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | D |
| Working port | Standard version fastening thread, port B and S: SAE flange lateral, offset 90°, UNC metric (can only be ordered without through- drive (N00) or with K.. through-drives) | 63 |
