Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31L-PSC62N00 -SO814R902409031

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31L-PSC62N00-SO814, material number R902409031. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 814.

Number: R902409031
Type code: A A10V O 71 DFLR/31L-PSC62N00 -SO814
Group: A10VO 71
Edition: 06/2020

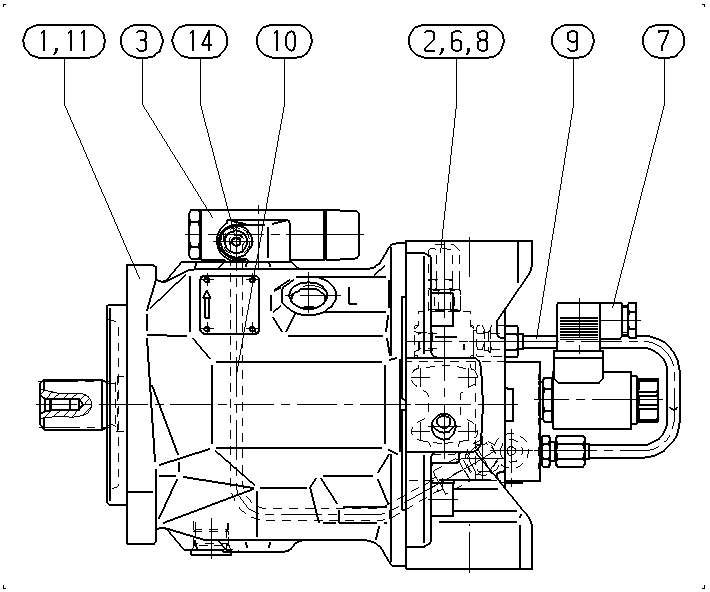

A A10V O 71 DFLR/31L-PSC62N00 -SO814 — Drawing

Pos.	Number	Name	Qty
	R910946268	BASE UNIT Assembly parts list →L	1
	R902533362	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910914728	SOCKET HEAD CAP SCREW	4
	R910991705	VALVE PLATE Assembly parts list →L	1
	R902434482	SEAL	1
	R910991634	PIPING Assembly parts list →L	1
	R902409030	PIPING Assembly parts list →L	1
	R902409026	POWER DIAGRAM	1
	R909154478	SCREW PLUG	3
60	R909154493	SAFETY CAP	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code

Other versions 17
