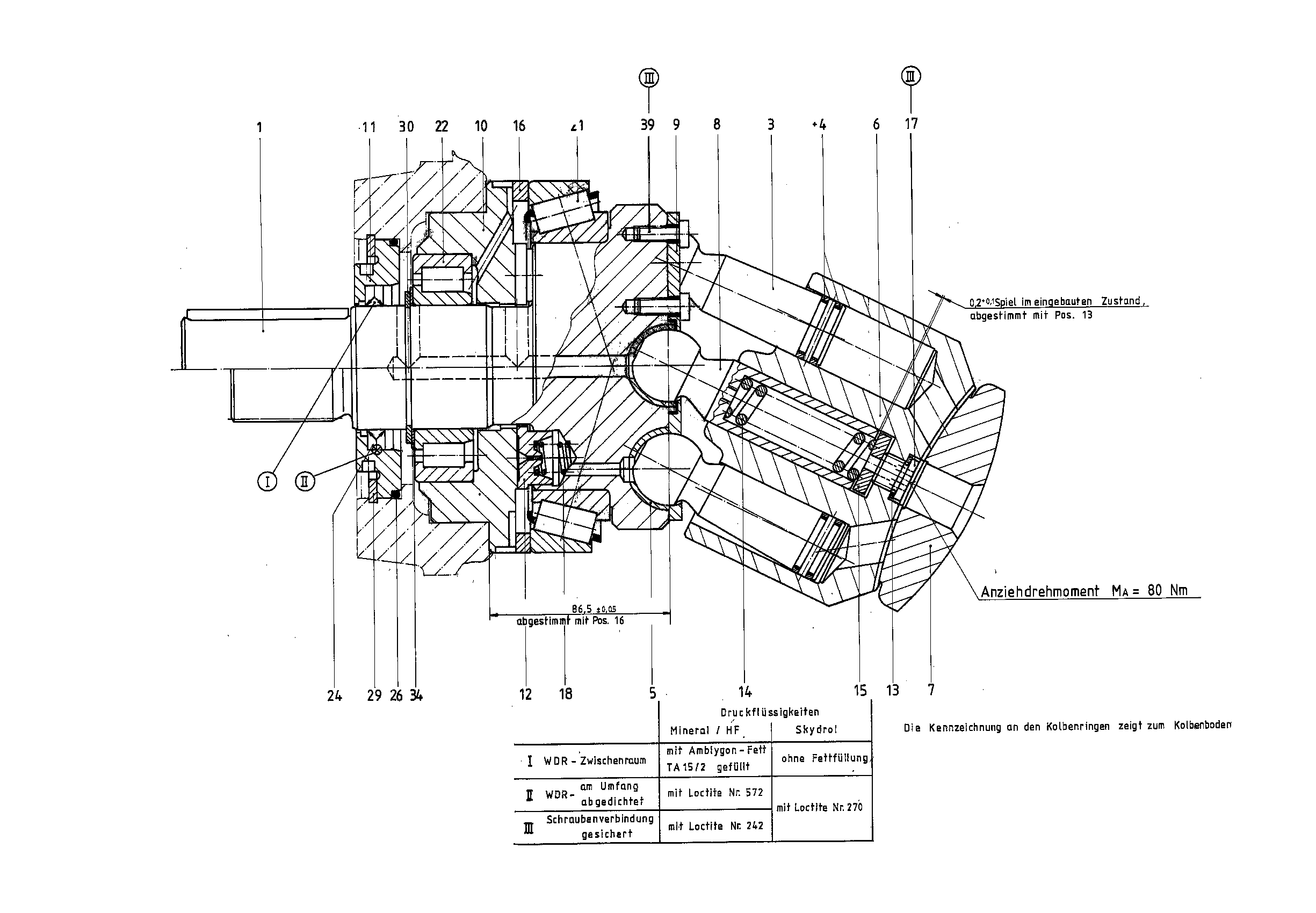

Unit · ROTARY GROUP
TW E A6VLM 250 /61W-VZR902409486
Rotary group Bosch Rexroth series A6VM, type code TWEA6VLM250/61W-VZ, material number R902409486. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z).
- Number
- R902409486
- Type code
- TW E A6VLM 250 /61W-VZ
- Group
- A6VLM 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902566775 | DRIVE FLANGE | 1 | ||
| R902441090 | PISTON | 7 | ||
| R902491349 | CYLINDER | 1 | ||
| R910922503 | CONTROL LENS | 1 | ||
| R902519719 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| R902410825 | BEARING RING | 1 | ||
| R910984368 | SEALING FLANGE | 1 | ||
| R910906308 | PAD | 7 | ||
| R910969915 | SHIM RING | 1 | ||
| R910900002 | COMPRESSION SPRING | 1 | ||
| R910900003 | WASHER | 1 | ||
| R902416435 | TUNING KIT | 1 | ||
| R910969893 | SPACER SCREW | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R913045638 | TAPERED-ROLLER BEARING | 1 | ||
| R910717223 | CYL. ROLLER BEARING | 1 | ||
| R910966488 | SHAFT SEALING RINGD | 1 | ||
| R910908213 | O-RINGD | 1 | ||
| 27 | R910670162 | O-RING | 1 | |
| R910797448 | RETAINING RING | 1 | ||
| R910082953 | RETAINING RING | 1 | ||
| R910906310 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
