Unit · AXIAL-PISTON MOTOR

AA10VM45DG/52W1-VRC64N000-S1167R902409587

Axial piston motor Bosch Rexroth series A10VM, type code AA10VM45DG/52W1-VRC64N000-S1167, material number R902409587. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Control devices: two-point control direct operated, external control pressure supply without on/off valve (DG). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Valves: without valve (0). Special version no. 1167.

Number: R902409587
Type code: AA10VM45DG/52W1-VRC64N000-S1167
Group: A10VM 45
Edition: 06/2020

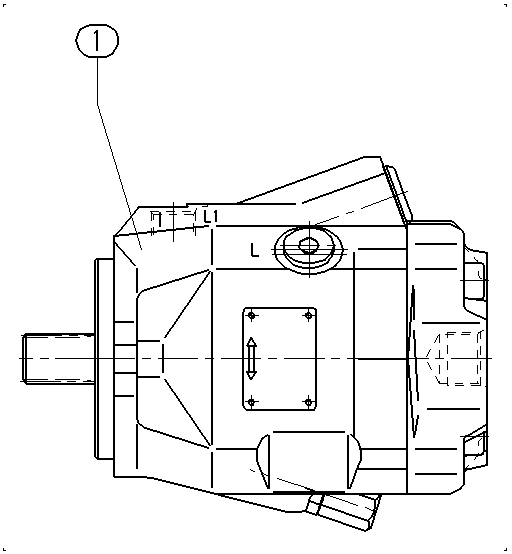

AA10VM45DG/52W1-VRC64N000-S1167 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R902407528	BASE UNIT Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10V
Size (NG)	45	45
Control devices	Two-point control direct operated, external control pressure supply without on/off valve	DG
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft bi-directional	W
Minimum displacement	Vg min [cm3] steplessly adjustable from/to	1
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Splined shaft similar to ISO 3019-1 for high torque	R
Valves	Without valve	0

Parameters from the type code

Other versions 9
