Unit · AXIAL-PISTON PUMP

AL A10VSO 18 DFR /31L-PUC62N00R902409829

Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DFR/31L-PUC62N00, material number R902409829. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft ISO 3019-1 reduced diameter, not for through drive (U). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).

Number
R902409829
Type code
AL A10VSO 18 DFR /31L-PUC62N00
Group
A10VSO 18
Edition
06/2020

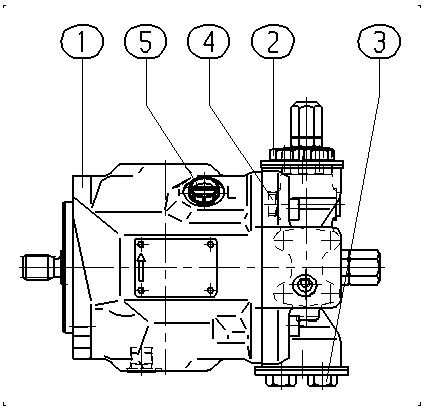

AL A10VSO 18 DFR /31L-PUC62N00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910928848AXIAL-PISTON PUMP Assembly parts list →L1
R902400575FLANGE COVER1
R902400579FLANGE COVER1
R902602014SEAL SCREW1
R902602015SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar)A10VS
Operating modePump, open circuitO
Size (NG)1818
Control devicewith flow controller X-T open hydraulicDFR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftSplined shaft ISO 3019-1 reduced diameter, not for through driveU
Mounting flangeISO 3019-1 2-holeC
Working portSAE flange ports according to ISO 6162, UNC fastening thread laterally opposite62
Through driveWithout through driveN00
