Unit · AXIAL-PISTON PUMP

A A10V O 60 DFR1/52W-PUC11N000 -S1157R902409861

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52W-PUC11N000-S1157, material number R902409861. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00).

Number
R902409861
Type code
A A10V O 60 DFR1/52W-PUC11N000 -S1157
Group
A10VO 60
Edition
06/2020

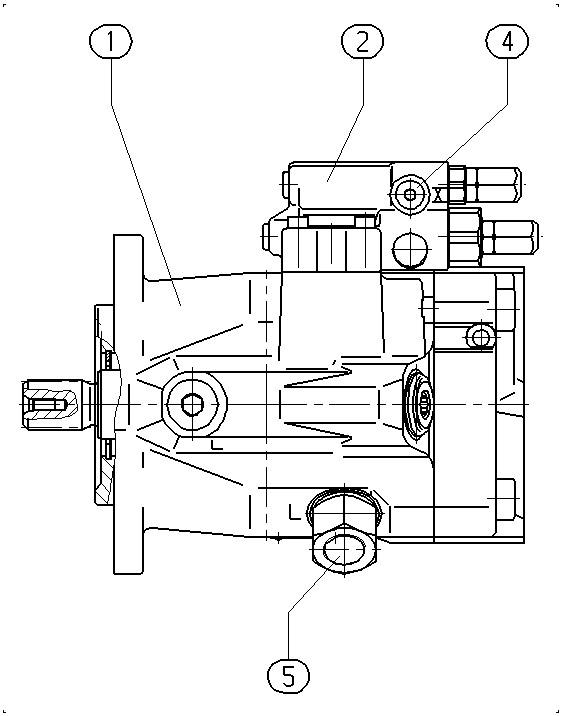

A A10V O 60 DFR1/52W-PUC11N000 -S1157 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902409914BASE UNIT Assembly parts list →L1
R902450440CONTROL VALVE Assembly parts list →L1
R910921653ADAPTER Assembly parts list →L1
R910792772ADAPTER Assembly parts list →L1
70R902421945SHIPPING PROTECTION1
71R902421949SHIPPING PROTECTION1
72R902602011SEAL SCREW1
73R902602008SEAL SCREW1
75R909830326NAMEPLATE1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)6060
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00
