Unit · AXIAL-PISTON PUMP
AL A10VSO 10 DFR1/52L-PPA14N00R902410455
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO10DFR1/52L-PPA14N00, material number R902410455. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged With flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Drive shaft: parallel keyed Shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 2-hole (A). Working port: threaded port, metric Rear (14). Through drive: without through drive (N00).
- Number
- R902410455
- Type code
- AL A10VSO 10 DFR1/52L-PPA14N00
- Group
- A10VSO 10
- Edition
- 06/2020

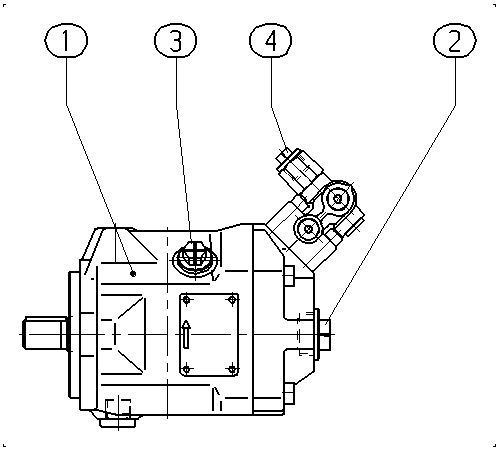

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410454 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602012 | SEAL SCREW | 2 | ||
| R902602009 | SEAL SCREW | 1 | ||
| R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10VS |
| Operating mode | Pump, open circuit | O |
| Control device | With flow controller X-T plugged With flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shaft | Parallel keyed Shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 2-hole | A |
| Working port | Threaded port, metric Rear | 14 |
| Through drive | Without through drive | N00 |
