Unit · AXIAL-PISTON PUMP
AA10VO60ED73/52L-VSC12NT-S1309R902410634
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60ED73/52L-VSC12NT-S1309, material number R902410634. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Special version no. 1309.
- Number
- R902410634
- Type code
- AA10VO60ED73/52L-VSC12NT-S1309
- Group
- A10VO 60
- Edition
- 06/2020

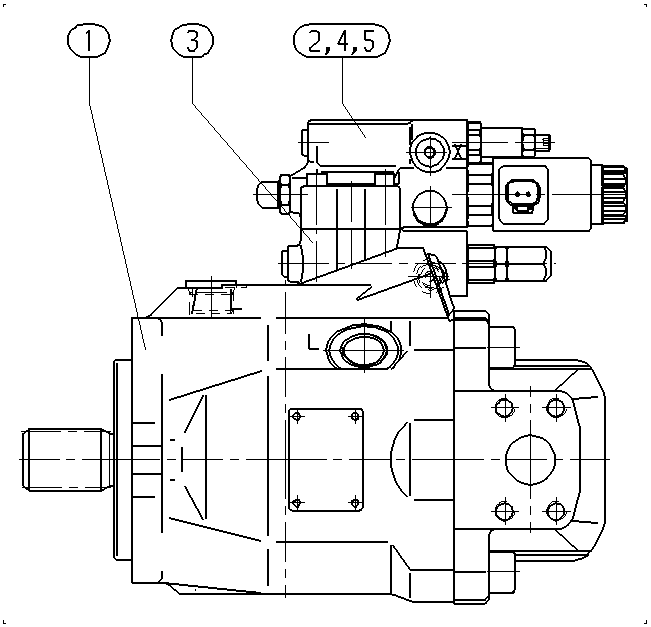

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902417174 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533339 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533846 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| 60 | R909831568 | SAFETY CAP | 1 | |
| 61 | R902532435 | SAFETY CAP | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
