Unit · AXIAL-PISTON MOTOR
A A10V E 45 HZ6 /52W1-VSF95N000 -S2623R902410943
Axial piston motor Bosch Rexroth series A10VM, type code AA10VE45HZ6/52W1-VSF95N000-S2623, material number R902410943. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Control devices: two-point control hydraulic orifice with (HZ6). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Valves: without valve (0). Special version no. 2623.
- Number
- R902410943
- Type code
- A A10V E 45 HZ6 /52W1-VSF95N000 -S2623
- Group
- A10VE 45
- Edition
- 06/2020

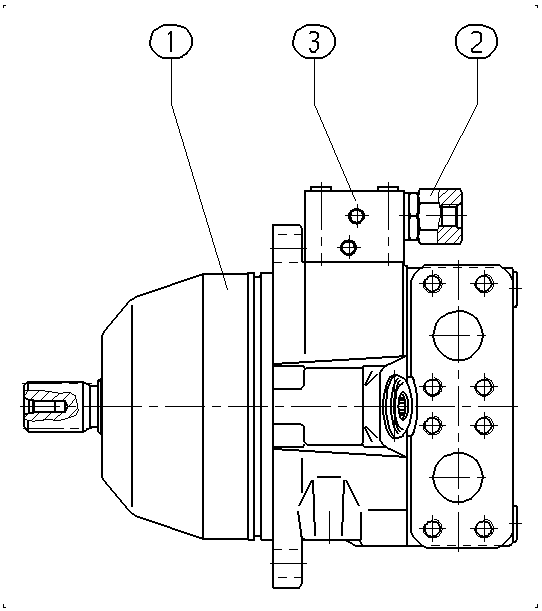

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410764 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410659 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902417132 | VALVE HOUSING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic orifice with | HZ6 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Valves | Without valve | 0 |
