Unit · BASE UNIT
GA10VO60OV/52L-VWC12K68-S2649R902411326
Base unit Bosch Rexroth series A10VO, type code GA10VO60OV/52L-VWC12K68-S2649, material number R902411326. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2649.
- Number
- R902411326
- Type code
- GA10VO60OV/52L-VWC12K68-S2649
- Group
- A10VO 60
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

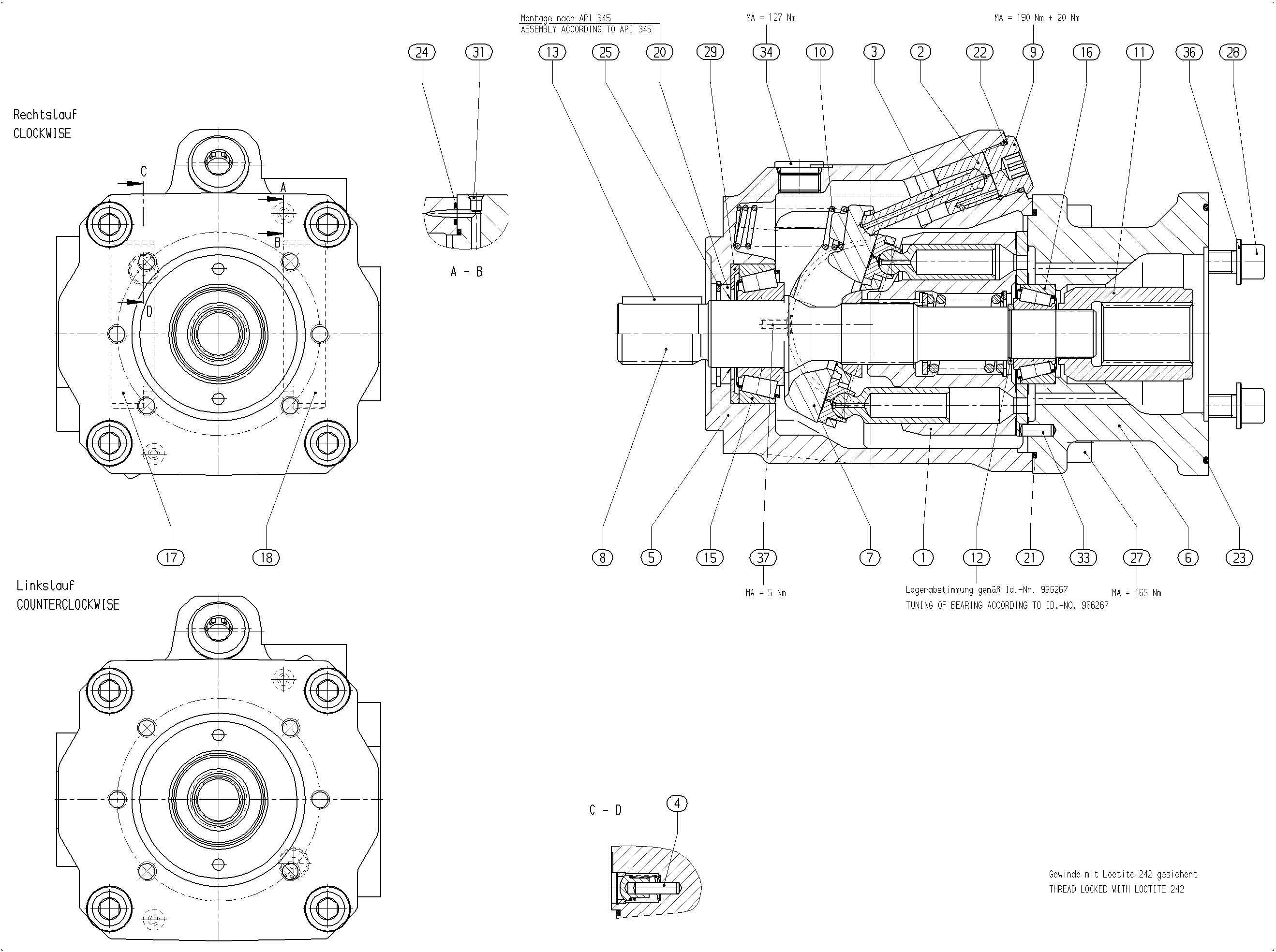

| R902454129 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902405844 | CHECK VALVE | 1 | ||
| R902419467 | PUMP HOUSING | 1 | ||
| R902411320 | CONNECTION PLATE | 1 | ||
| R902437116 | SWASH PLATE | 1 | ||
| R902413426 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910973548 | COMPRESSION SPRING | 1 | ||
| R902436083 | SPLINED COUPLING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910640182 | O-RING | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989235 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
