Unit · AXIAL-PISTON PUMP
AA4VSO71EO2K/10X-PPB13K02R902411423
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO71EO2K/10X-PPB13K02, material number R902411423. Nominal size: NG 71. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902411423
- Type code
- AA4VSO71EO2K/10X-PPB13K02
- Group
- A4VSO 71
- Edition
- 11/2018

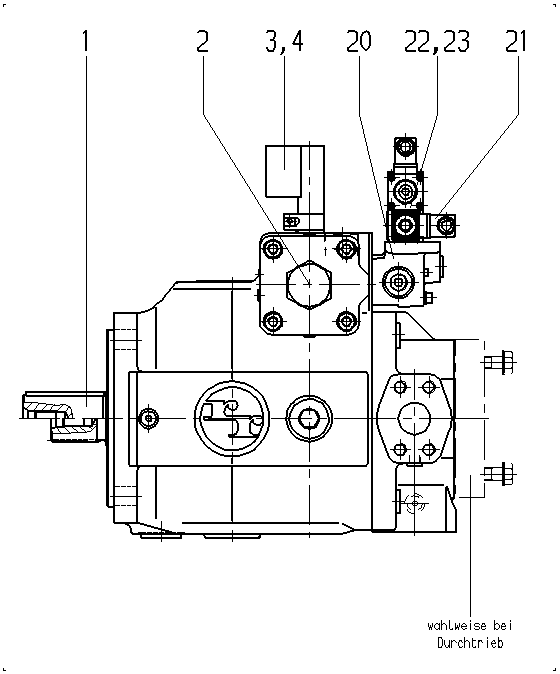

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916138 | BASE UNIT Assembly parts list →L | 1 | ||
| R910971724 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901151 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910941006 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910995947 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R910988140 | VALVE MODULE Assembly parts list →L | 1 | ||
| R910933745 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 2 | 02 |
