Unit · AXIAL-PISTON MOTOR
AL A10V M 45 EZ1 /52W1-VSC95N000 -S1173R902411639
Axial piston motor Bosch Rexroth series A10VM, type code ALA10VM45EZ1/52W1-VSC95N000-S1173, material number R902411639. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control electric with U = 12 V without switching solenoid switching time (EZ1). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Valves: without valve (0).
- Number
- R902411639
- Type code
- AL A10V M 45 EZ1 /52W1-VSC95N000 -S1173
- Group
- A10VM 45
- Edition
- 07/2020

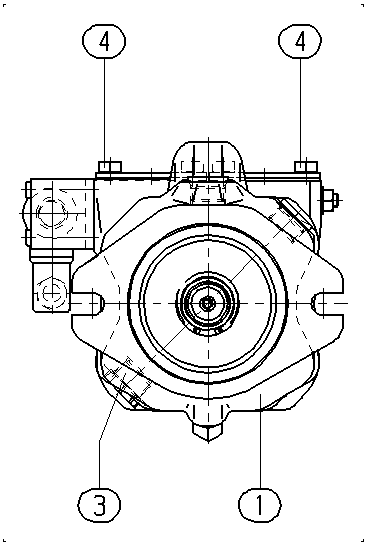

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410298 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902400579 | FLANGE COVER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control electric with U = 12 V without switching solenoid switching time | EZ1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Valves | Without valve | 0 |
