Unit · CONTROL
V A7V O 500 EP2D /63R-V 01VR902411678
Control Bosch Rexroth series A7VO, type code VA7VO500EP2D/63R-V01V, material number R902411678. Nominal size: NG 500.
- Number
- R902411678
- Type code
- V A7V O 500 EP2D /63R-V 01V
- Group
- A7VO 500
- Edition
- 06/2020

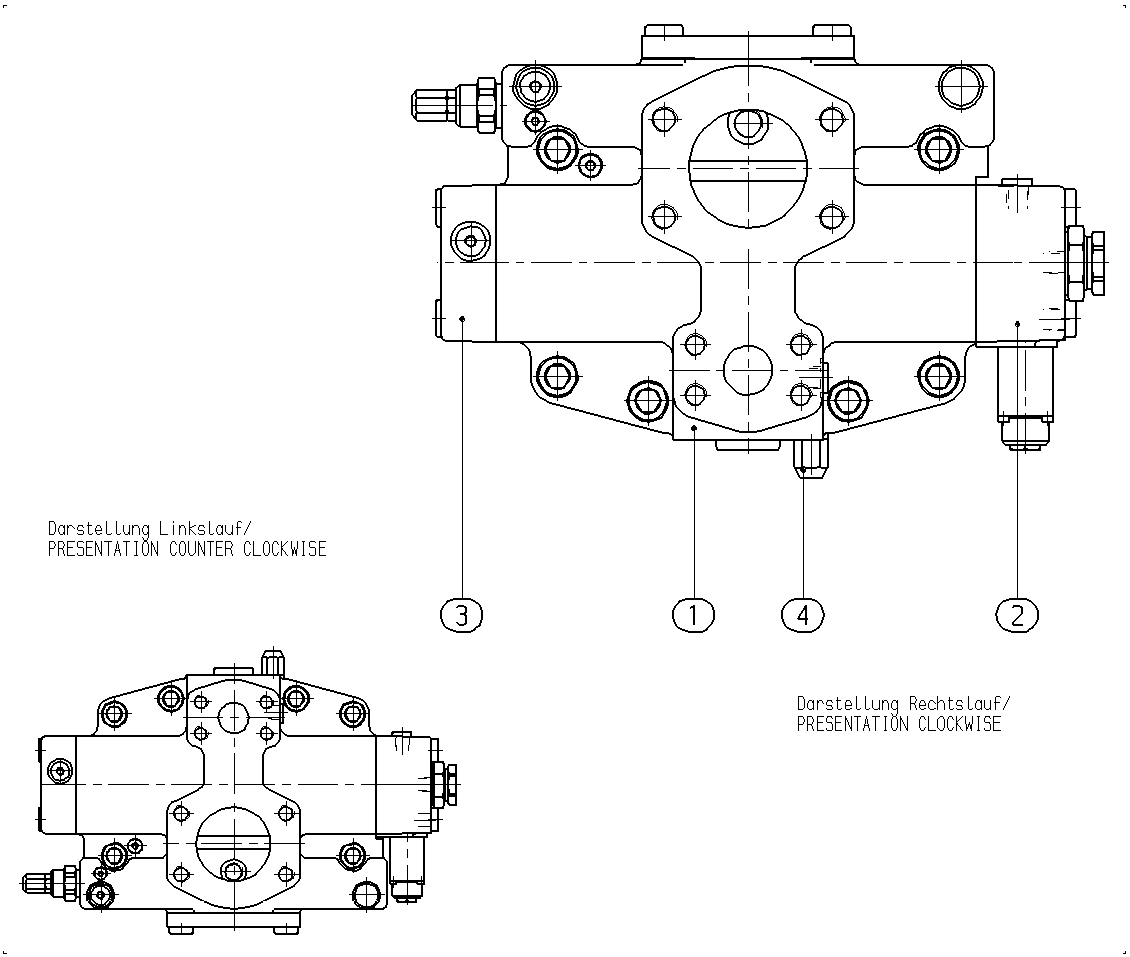

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902411680 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902411681 | CONTROL PART Assembly parts list →L | 1 | ||
| R902411682 | COVER Assembly parts list →L | 1 | ||
| R910930271 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 500 | 500 | |
| Hydraulic control, with electric proportional valve, with integrated pressure control (fixed setting) Control voltage 24 V | EP2D | |
| Series 6, Index 3 | 63 | |
| FKM (Fluoro-rubber) | V | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 | |
| With optical swivel angle indicator | V |
