Unit · BASE UNIT

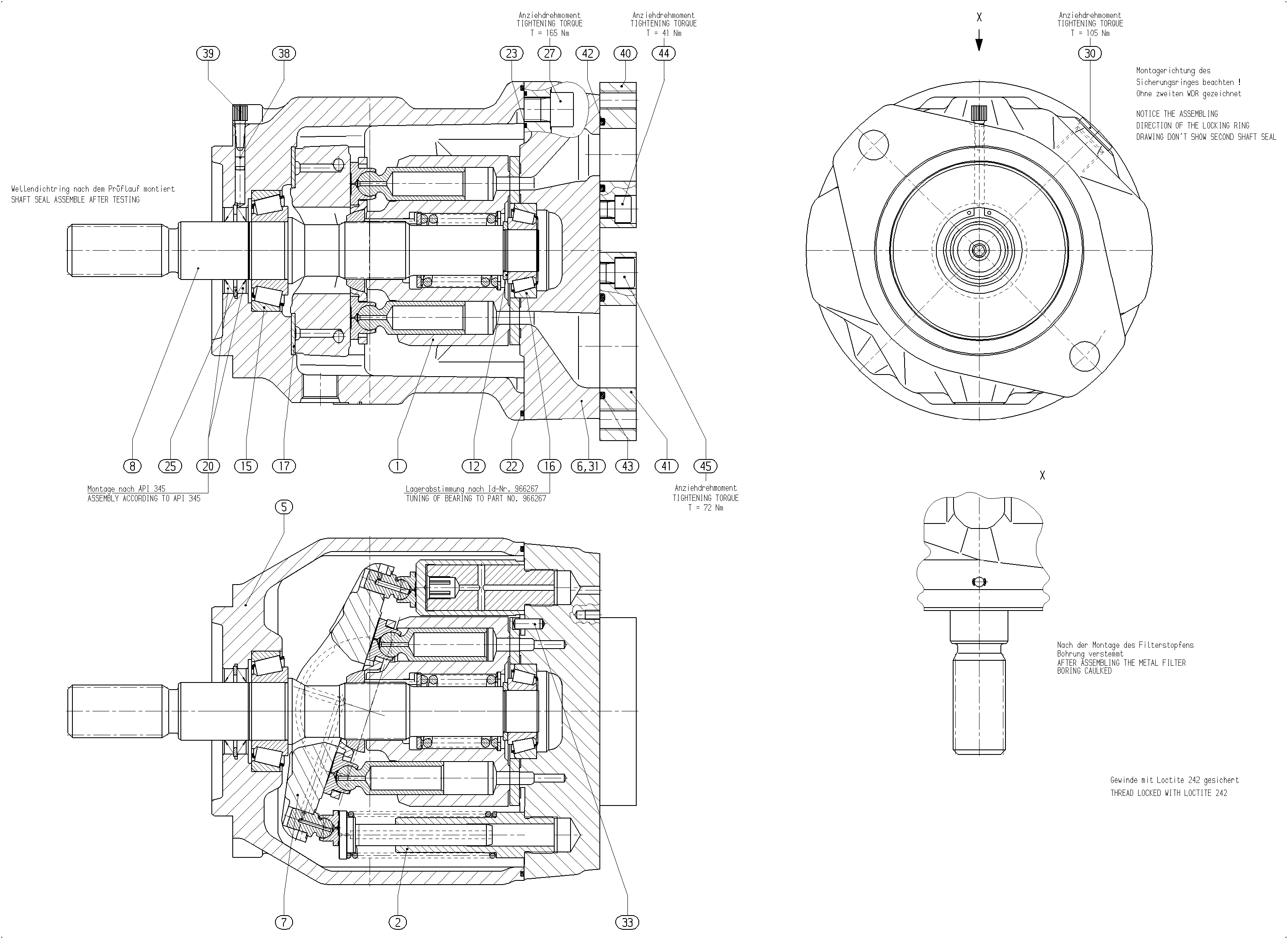

G A10V O 71 OV /31L-VSC93N00 -S1229R902411752
Base unit Bosch Rexroth series A10VO, type code GA10VO71OV/31L-VSC93N00-S1229, material number R902411752. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1229.
- Number
- R902411752
- Type code
- G A10V O 71 OV /31L-VSC93N00 -S1229
- Group
- A10VO 71
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910972781 | PUMP HOUSING | 1 | ||
| R902411709 | CONNECTION PLATE | 1 | ||
| R910961020 | SWASH PLATE | 1 | ||
| R902411687 | DRIVE SHAFT | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910972782 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 2 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 | ||
| R902411372 | INTERMEDIATE FLANGE | 1 | ||
| R902411373 | INTERMEDIATE FLANGE | 1 | ||
| R910113778 | O-RING | 1 | ||
| R910973109 | O-RING | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
