Unit · AXIAL-PISTON PUMP
P A4VSG 500 HD1AT /30R-PPH10K240N-SO829R902411934
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500HD1AT/30R-PPH10K240N-SO829, material number R902411934. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 127-2 (C) 1 1/2 in 17T 12/24DP (K24). Valves: without valve block (0). Filtration: without filter (N). Special version no. 829.
- Number
- R902411934
- Type code
- P A4VSG 500 HD1AT /30R-PPH10K240N-SO829
- Group
- A4VSG 500
- Edition
- 06/2020

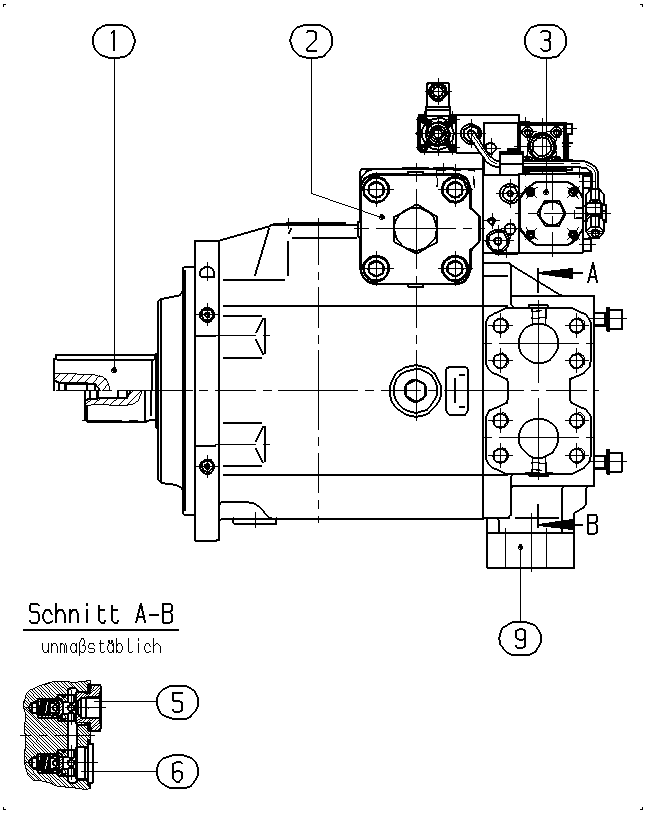

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910987183 | BASE UNIT Assembly parts list →L | 1 | ||
| R902411935 | CONTROL Assembly parts list →L | 1 | ||
| R910924418 | SPRING PACK Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R902414231 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902557497 | FLANGE COVER Assembly parts list →L | 1 | |
| 82 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 127-2 (C) 1 1/2 in 17T 12/24DP | K24 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
