Unit · CONTROL
V A4VSG 500 HDAT /30R -SO829R902411935
Control Bosch Rexroth series A4VSO, type code VA4VSG500HDAT/30R-SO829, material number R902411935. Nominal size: NG 500. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902411935
- Type code
- V A4VSG 500 HDAT /30R -SO829
- Group
- A4VSG 500
- Edition
- 06/2020

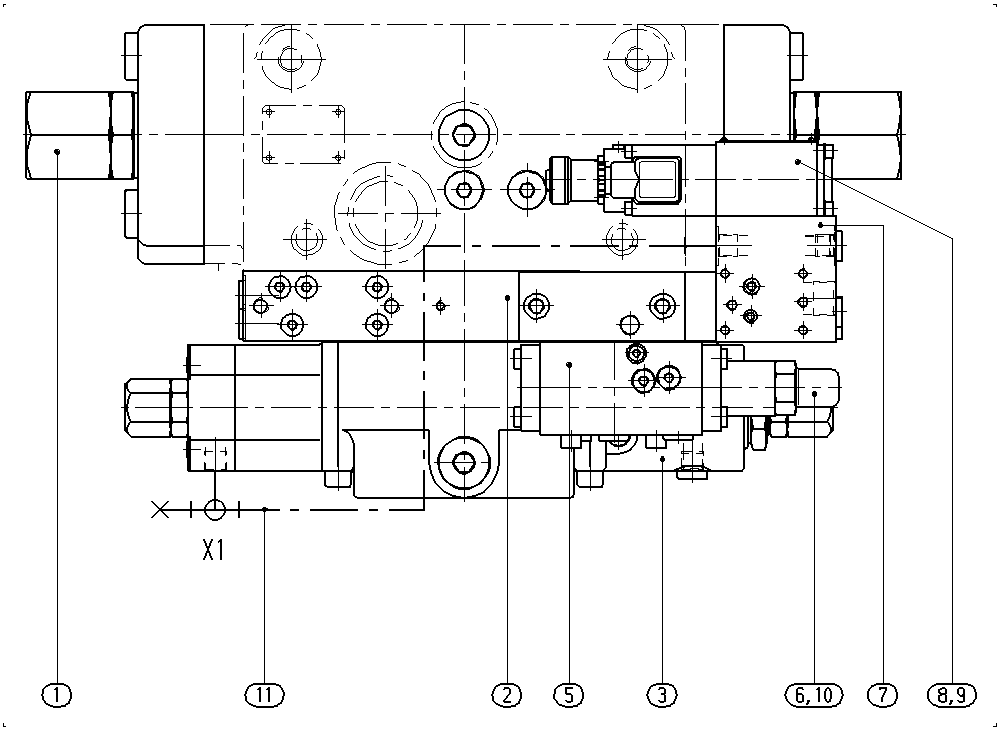

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971762 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910987442 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910919078 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910916448 | PLATE Assembly parts list →L | 1 | ||
| R910923859 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910964877 | BLOCK Assembly parts list →L | 1 | ||
| R902405794 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R910977595 | SOCKET HEAD CAP SCREW | 4 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 4 | ||
| R902411245 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T | |
| Series | Series 3, index 0 | 30 |
