Unit · AXIAL-PISTON PUMP
AA10VO25LR/53R-PXX12XXX-HCMR902412945
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO25LR/53R-PXX12XXX-HCM, material number R902412945. Nominal size: NG 25. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 not for through drive (P). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Connector for solenoids: 13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DC (H).
- Number
- R902412945
- Type code
- AA10VO25LR/53R-PXX12XXX-HCM
- Group
- A10VO 25
- Edition
- 06/2020

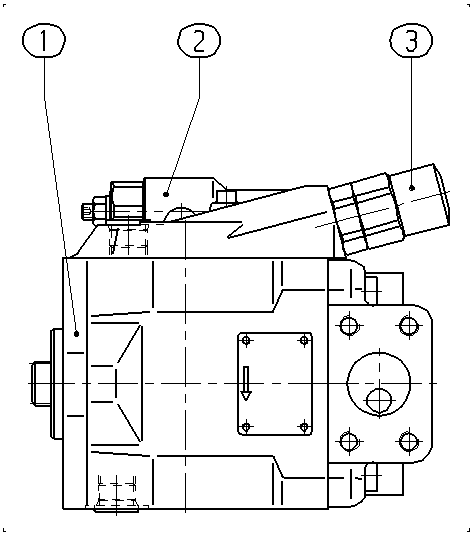

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902412950 | BASE UNIT Assembly parts list →L | 1 | ||
| R902414255 | CONTROL VALVE | 1 | ||
| R902412654 | CONTROL VALVE | 1 | ||
| 11 | R902413279 | POWER DIAGRAM | 1 | |
| 12 | R902414254 | GEAR PUMP | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 25 | 25 |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 not for through drive | P |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Connector for solenoids | 13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DC | H |
