Unit · BASE UNIT

G A10V O 25 OV /53R-PXX12XXX -HCMR902412950

Base unit Bosch Rexroth series A10VO, type code GA10VO25OV/53R-PXX12XXX-HCM, material number R902412950. Nominal size: NG 25. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 not for through drive (P). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Connector for solenoids: 13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DC (H).

Number
R902412950
Type code
G A10V O 25 OV /53R-PXX12XXX -HCM
Group
A10VO 25
Edition
06/2020

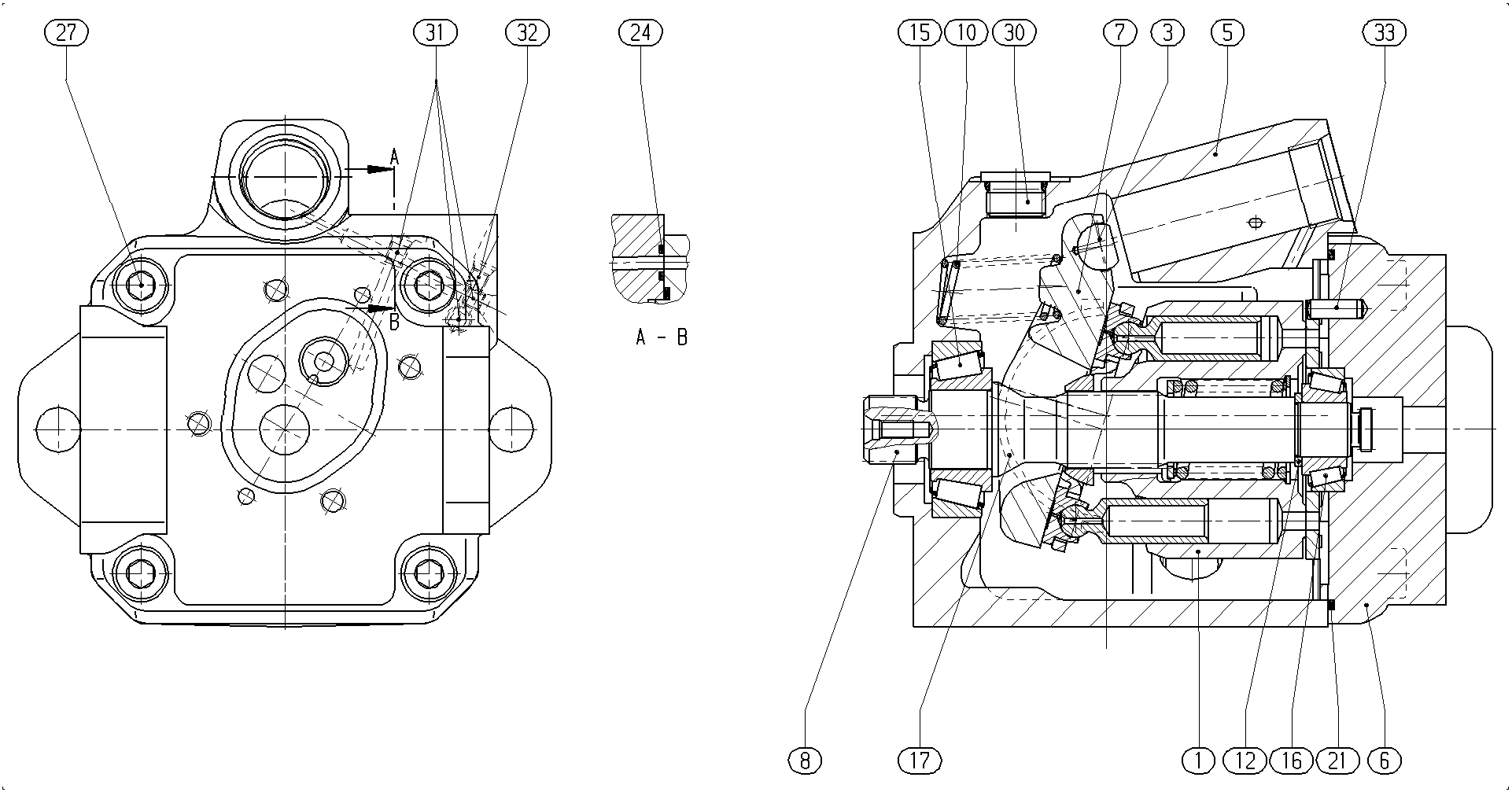

G A10V O 25 OV /53R-PXX12XXX -HCM — Drawing
Pos.NumberNameQtyAdd to inquiry
R902439597ROTARY GROUP Assembly parts list →L1
R910984014BALL STOP1
R902412473PUMP HOUSING1
R902412570CONNECTION PLATE1
R902411869SWASH PLATE1
R902412529DRIVE SHAFT1
R910947314COMPRESSION SPRING1
R902400789ADJUSTMENT SHIM1
R902438109TAPERED-ROLLER BEARING1
R902438110TAPERED-ROLLER BEARING1
R902410506BEARING SHELL2
R913052046O-RINGD1
R910942134R-RINGD1
R910110191SOCKET HEAD CAP SCREW4
R909153338SCREW PLUGD1
R909831318DOUBLE BREAK-OFF PLUG3
R910978752BREAK-OFF PLUG1
R902533908STRAIGHT PIN1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)2525
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Drive shaftParallel keyed shaft DIN 6885 not for through driveP
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Connector for solenoids13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DCH
