Unit · CONTROL
V A6V M 250 HA2T /63-V027V -SO113R902412984
Control Bosch Rexroth series A6VM, type code VA6VM250HA2T/63-V027V-SO113, material number R902412984. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Swivel angle sensor: optical swivel angle sensor (V). Standard/special version: special version (-S). Special version no. 113.
- Number
- R902412984
- Type code
- V A6V M 250 HA2T /63-V027V -SO113
- Group
- A6VM 250
- Edition
- 06/2020

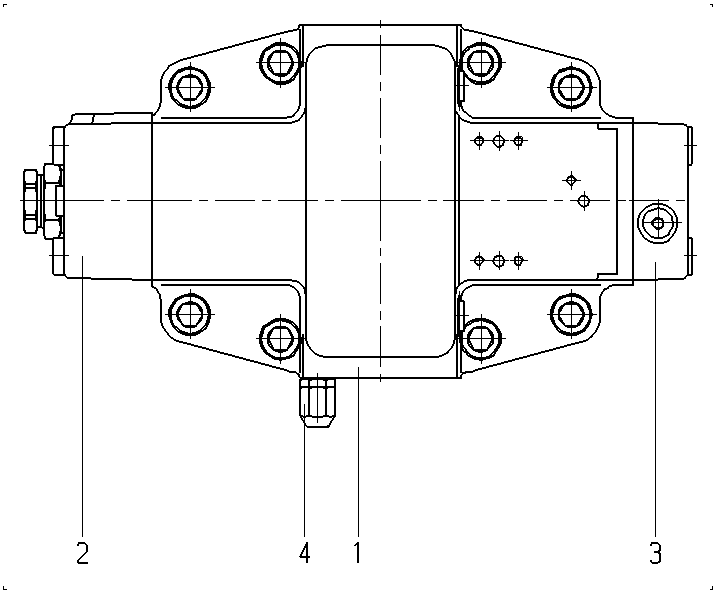

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902412986 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910990187 | CONTROL PART Assembly parts list →L | 1 | ||
| R910934340 | COVER Assembly parts list →L | 1 | ||
| R910937965 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Standard/special version | Special version | -S |
