Unit · AXIAL-PISTON PUMP
P A4VSG 125 HS3E /30R-PZB10KB60N-S1217R902413025
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG125HS3E/30R-PZB10KB60N-S1217, material number R902413025. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 2-hole 1 1/2 in 17T 12/24DP (KB6). Valves: without valve block (0). Filtration: without filter (N). Special version no. 1217.
- Number
- R902413025
- Type code
- P A4VSG 125 HS3E /30R-PZB10KB60N-S1217
- Group
- A4VSG 125
- Edition
- 07/2020

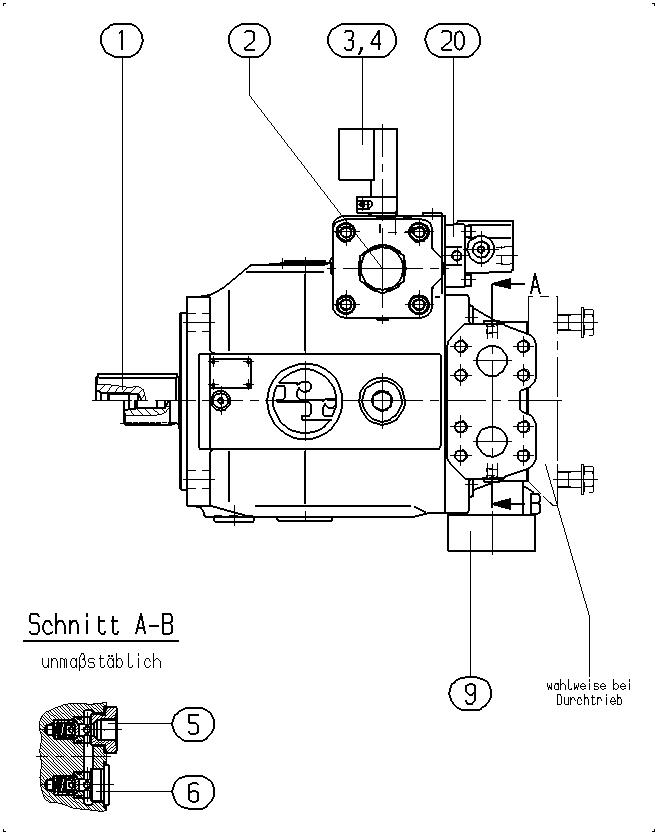

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902412961 | BASE UNIT Assembly parts list →L | 1 | ||
| R902403755 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901152 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R902414216 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| 32 | R902456269 | COVER Assembly parts list →L | 1 | |
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 | |
| 82 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 125, 2-hole 1 1/2 in 17T 12/24DP | KB6 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
