Unit · CONTROL
V AA6V M 355 HD1D /63-V017 -SO161R902413556
Control Bosch Rexroth series A6VM, type code VAA6VM355HD1D/63-V017-SO161, material number R902413556. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Standard/special version: special version (-S). Special version no. 161.
- Number
- R902413556
- Type code
- V AA6V M 355 HD1D /63-V017 -SO161
- Group
- A6VM 355
- Edition
- 06/2020

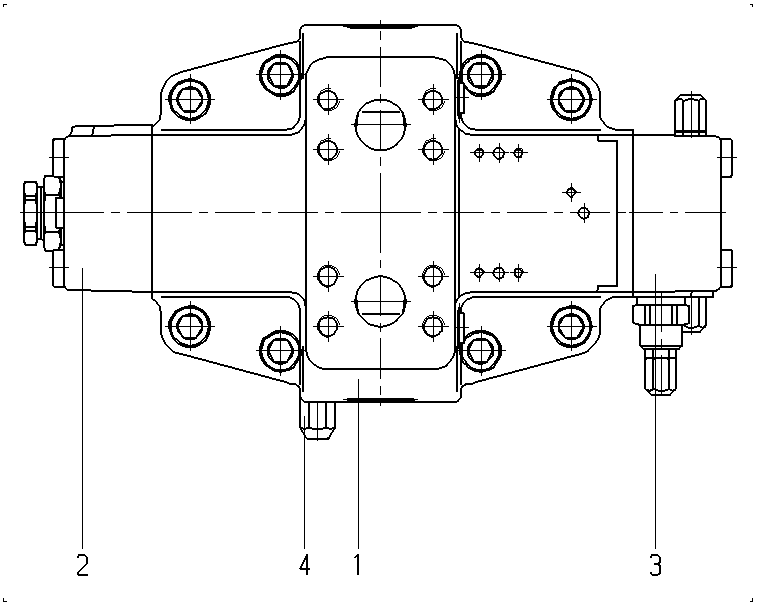

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902404773 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910983143 | CONTROL PART Assembly parts list →L | 1 | ||
| R902413557 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Standard/special version | Special version | -S |
