Unit · AXIAL-PISTON PUMP
AL A20V O 60 DRG /10R-VSD24K68 -S2086R902413930
Axial piston pump Bosch Rexroth series A20VO, type code ALA20VO60DRG/10R-VSD24K68-S2086, material number R902413930. Nominal size: NG 60. Axial piston unit: swashplate design, variable (back to back version) (A20V). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 4-hole (D). Working port: SAE flanges, two port B and one port S laterally opposite, metric fastening thread (24). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2086.
- Number
- R902413930
- Type code
- AL A20V O 60 DRG /10R-VSD24K68 -S2086
- Group
- A20VO 60
- Edition
- 06/2020

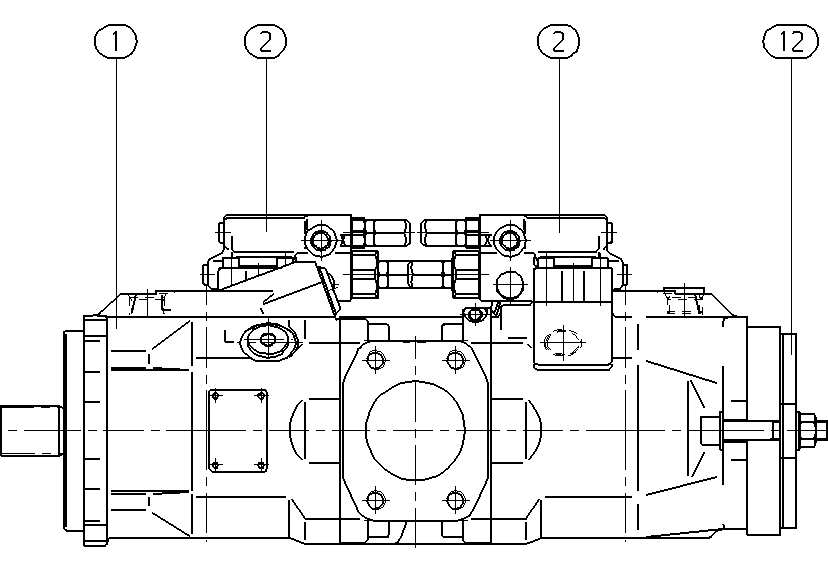

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902480574 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455384 | CONTROL VALVE Assembly parts list →L | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control for sizes 60, 72 and 85 92703 and | DRG | |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 4-hole | D |
| Working port | SAE flanges, two port B and one port S laterally opposite, metric fastening thread | 24 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
