Unit · AXIAL-PISTON PUMP
AHA10VO140DFR1/31L-PSD11N00-S1285R902414296
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO140DFR1/31L-PSD11N00-S1285, material number R902414296. Nominal size: NG 140. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 1285.
- Number
- R902414296
- Type code
- AHA10VO140DFR1/31L-PSD11N00-S1285
- Group
- A10VO 140
- Edition
- 07/2020

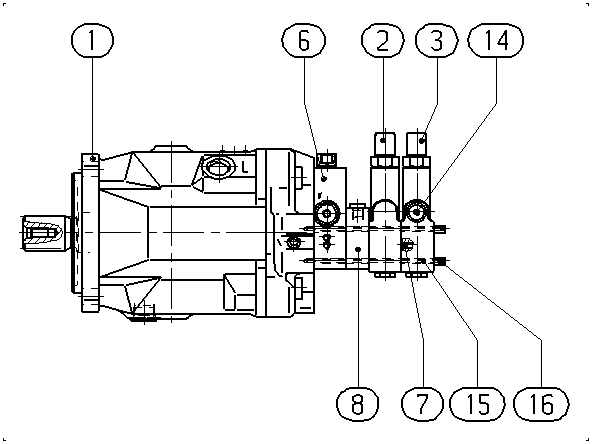

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949034 | BASE UNIT Assembly parts list →L | 1 | ||
| R910920180 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920244 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910974013 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R910983273 | NOZZLE | 1 | ||
| R902414218 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R910935007 | TIE-ROD | 4 | ||
| R910904410 | FEMALE HEX NUT | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
Other versions 7
- R910987357 AH A10V O140 DFR1/31L-PSD11N00
- R902417517 AH A10V O140 DFR1/31L-PSD11N00 -S1366
- R902443802 AH A10V O140 DFR1/31L-PSD11N00 -S1970
- R910968828 AH A10V O140 DFR1/31L-PSD11N00 -SO527
- R910949091 AHA10VO140DFR1/31L-PSD11N00-SO420
- R902432358 AHA10VO140DFR1/31L-PSD11N00-SO527
- R910997720 AHA10VO140DFR1/31L-PSD11N00-SO947
