Unit · AXIAL-PISTON PUMP
A A10VSO140 DR /31R-VPB12KB7R902414437
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DR/31R-VPB12KB7, material number R902414437. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, top, bottom, opposite metric. (12). Through drive: ISO 180, 4-hole 1 3/4 in 13T 8/16DP (KB7).
- Number
- R902414437
- Type code
- A A10VSO140 DR /31R-VPB12KB7
- Group
- A10VSO 140
- Edition
- 06/2020

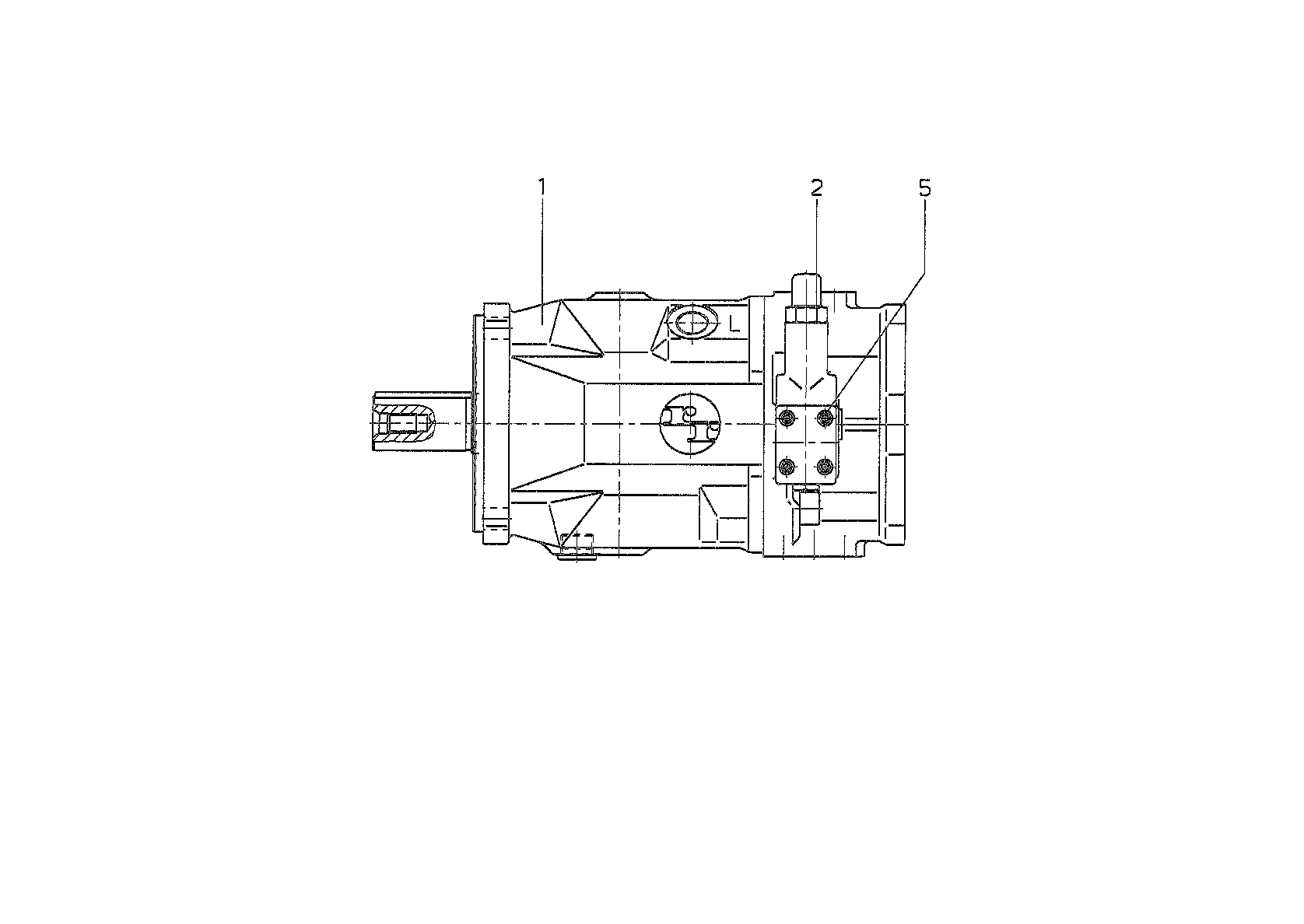

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902414430 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R910942826 | CONTROL VALVE Assembly parts list →L | 1 | |
| 5 | R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure controller hydraulic | DR |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, top, bottom, opposite metric. | 12 |
| Through drive | ISO 180, 4-hole 1 3/4 in 13T 8/16DP | KB7 |
