Unit · AXIAL-PISTON PUMP

AHA10VO140DFR1/31L-PQC13KC3-S1416R902414663

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO140DFR1/31L-PQC13KC3-S1416, material number R902414663. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: parallel keyed shaft DIN 6885 not for through drive (P). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only (13). Special version no. 1416.

Number
R902414663
Type code
AHA10VO140DFR1/31L-PQC13KC3-S1416
Group
A10VO 140
Edition
06/2020

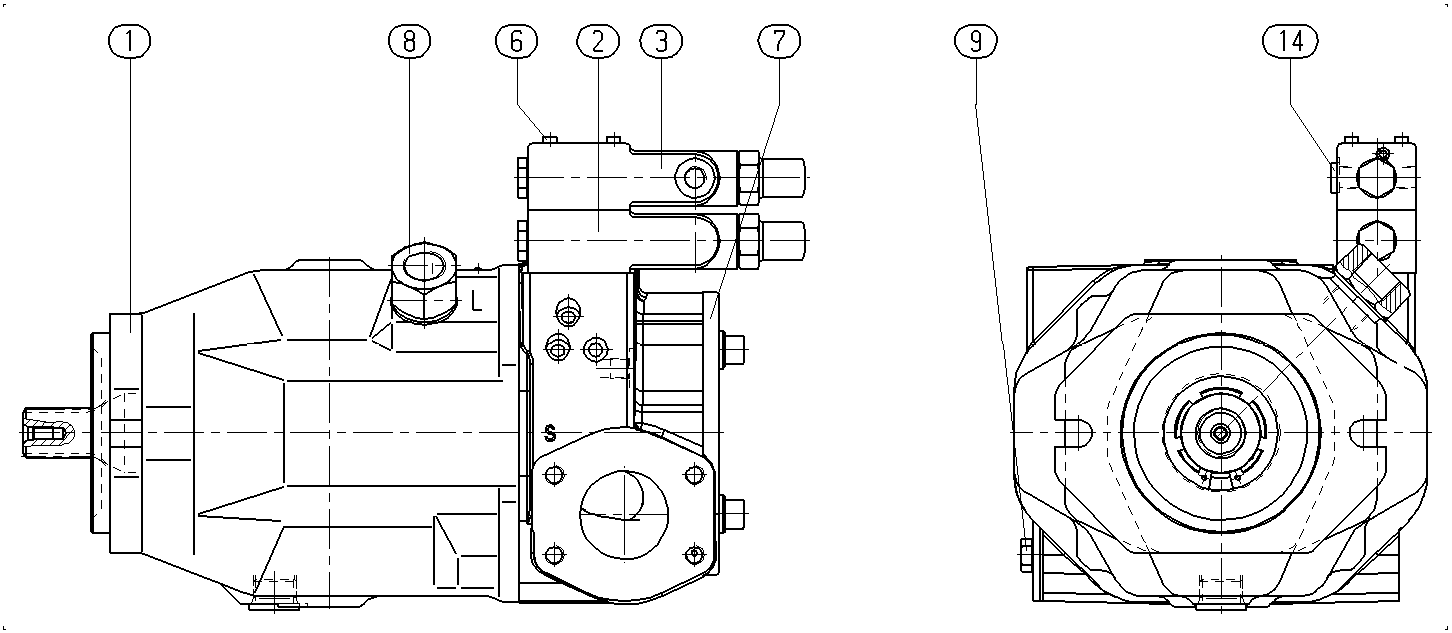

AHA10VO140DFR1/31L-PQC13KC3-S1416 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902414354BASE UNIT Assembly parts list →L1
R910920180CONTROL VALVE Assembly parts list →L1
R910920244CONTROL VALVE Assembly parts list →L1
R910799998SOCKET HEAD CAP SCREW4
R902469010SEALING COVER Assembly parts list →L1
R910910741ADAPTER Assembly parts list →L1
R902400594FLANGE COVER1
R909151979SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)140140
Control devicewith flow controller X-T plugged with flushing functionDFR1
Direction of rotationViewed on drive shaft counter-clockwiseL
Drive shaftParallel keyed shaft DIN 6885 not for through driveP
Working portSAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only13
