Unit · AXIAL-PISTON PUMP
PA4VSG125HD1D/30R-PPB10K250NR902415040
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG125HD1D/30R-PPB10K250N, material number R902415040. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Valves: without valve block (0). Filtration: without filter (N).
- Number
- R902415040
- Type code
- PA4VSG125HD1D/30R-PPB10K250N
- Group
- A4VSG 125
- Edition
- 07/2020

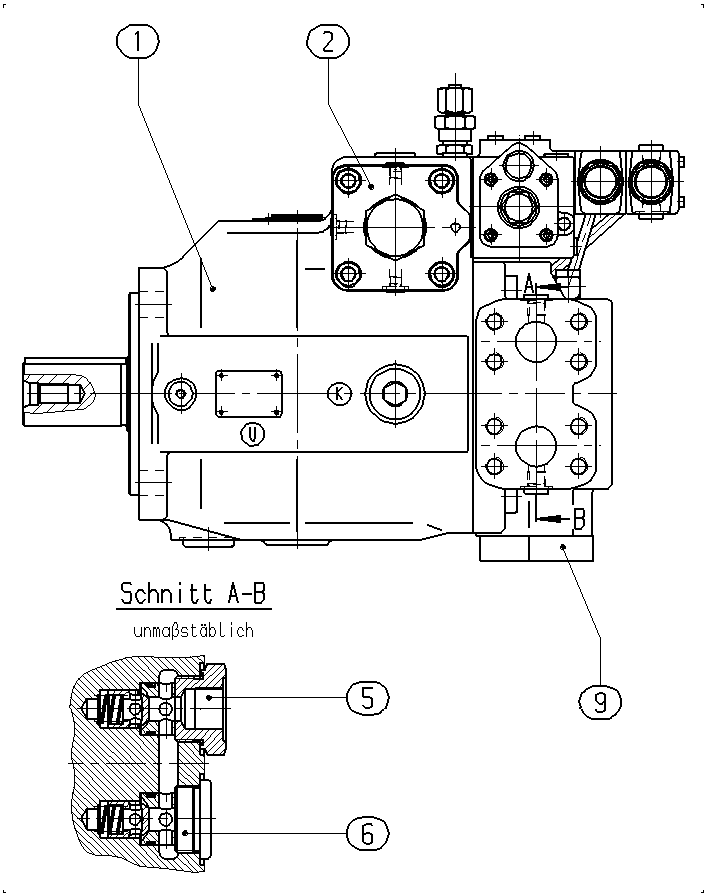

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902415008 | BASE UNIT Assembly parts list →L | 1 | ||
| R910999056 | CONTROL Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R910723126 | PLUG | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
