Unit · AXIAL-PISTON PUMP
AHA10VO100DFR1/31R-PWC62K07-S1319R902415778
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO100DFR1/31R-PWC62K07-S1319, material number R902415778. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 1319.
- Number
- R902415778
- Type code
- AHA10VO100DFR1/31R-PWC62K07-S1319
- Group
- A10VO 100
- Edition
- 06/2020

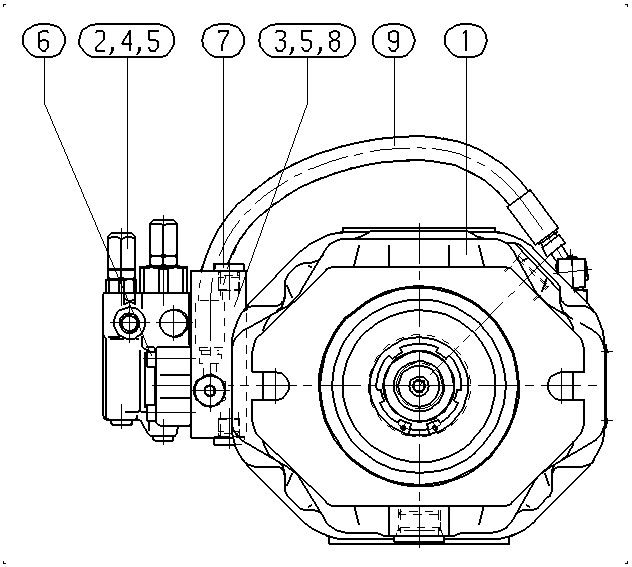

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902415657 | BASE UNIT Assembly parts list →L | 1 | ||
| R902448799 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910965980 | INTERMEDIATE PLATE | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R910515078 | O-RING | 3 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011601 | SCREW PLUG | 3 | ||
| R910946752 | NOZZLE | 1 | ||
| R910966205 | PIPING Assembly parts list →L | 1 | ||
| 15 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Same as "U", higher torque; limited suitability for through drive; for mounting option | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
