Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR1/52L-VUC13N00 -SO547R902417203
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/52L-VUC13N00-SO547, material number R902417203. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only (13). Through drive: without through drive (N00). Special version no. 547.
- Number
- R902417203
- Type code
- A A10V O 45 DFR1/52L-VUC13N00 -SO547
- Group
- A10VO 45
- Edition
- 06/2020

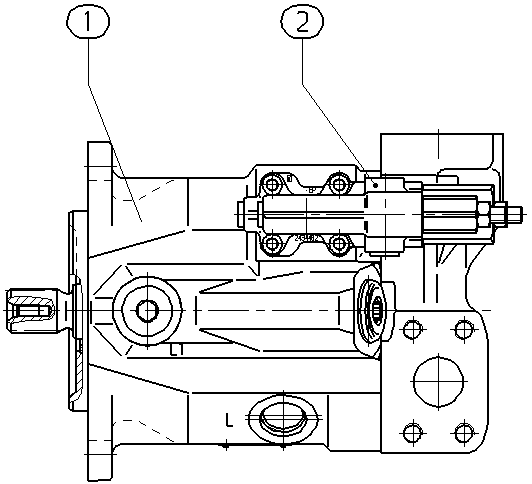

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451522 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450441 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| R902602014 | SEAL SCREW | 1 | ||
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only | 13 |
| Through drive | Without through drive | N00 |
Other versions 7
- R902431193 A A10V O 45 DFR1/52L-VUC13N00
- R902464965 A A10V O 45 DFR1/52L-VUC13N00 -SO547
- R902464964 AL A10V O 45 DFR1/52L-VUC13N00 -SO547
- R902469244 AL A10V O 45 DFR1/52L-VUC13N00 -SO547
- R992000705 AL A10V O 45 DFR1/52L-VUC13N00 -SO547
- R992000900 AL A10V O 45 DFR1/52L-VUC13N00 -SO547
- R992000918 AL A10V O 45 DFR1/52L-VUC13N00 -SO547
