Unit · BASE UNIT
G A10F D 85 /52W-VRZ -S1371R902417750

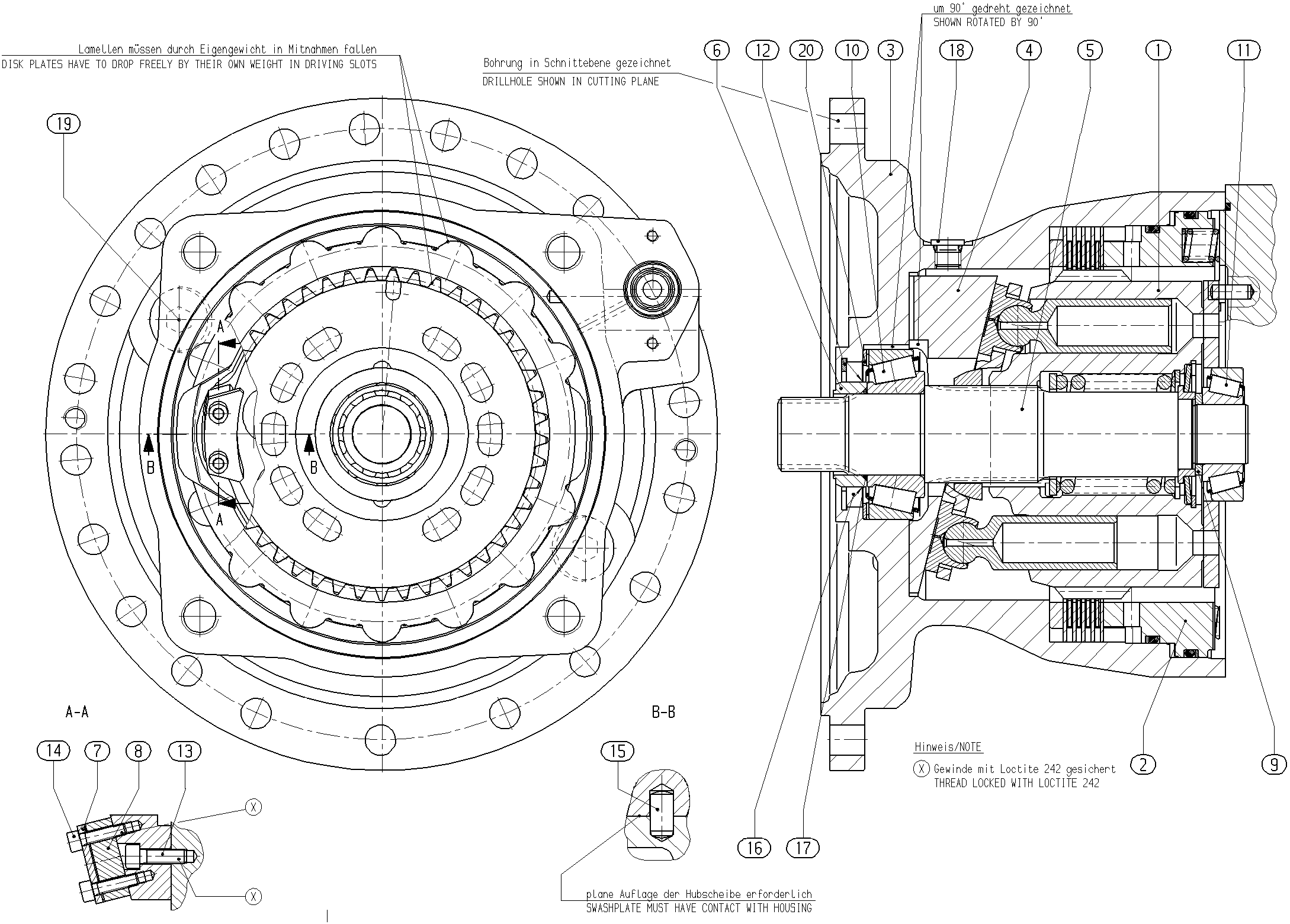

Base unit Bosch Rexroth series A10FD, type code GA10FD85/52W-VRZ-S1371, material number R902417750.
- Number
- R902417750
- Type code
- G A10F D 85 /52W-VRZ -S1371
- Group
- A10FD 85
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998858 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902405038 | THRUST RING | 1 | ||
| R902417592 | MOTOR HOUSING | 1 | ||
| R902549608 | CAM PLATE | 1 | ||
| R910997734 | DRIVE SHAFT | 1 | ||
| R910998573 | STOP SLEEVE | 1 | ||
| R902570105 | SEGMENT | 2 | ||
| R910998276 | SPACER SEGMENT | 2 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R913001596 | SOCKET HEAD CAP SCREWD | 2 | ||
| R913001593 | SOCKET HEAD CAP SCREWD | 4 | ||
| R910924011 | STRAIGHT PIND | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEAL | 1 | ||
| R902400984 | O-RING | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R913011611 | SCREW PLUG | 2 | ||
| R902416108 | STOP RING | 1 |
